• IEEE 802.3at Quad Port PSE controller
|
• Pin-Out enables Two-Layer PCB
|
• Kelvin Current Sensing
|
• 4-Point detection
|
• Automatic mode – as shipped
|
• Semi-Automatic mode – set by I
2C command
|
• Optional I
2C control and monitoring
|
• –40°C to 125°C Temperature range
|
• TSSOP 28 Package 9.8 mm x 6.6 mm
|
|
| CATALOG |
| TPS23861PWR COUNTRY OF ORIGIN |
TPS23861PWR PARAMETRIC INFO
|
TPS23861PWR PACKAGE INFO
|
TPS23861PWR MANUFACTURING INFO
|
TPS23861PWR PACKAGING INFO
|
TPS23861PWR ECAD MODELS
|
TPS23861PWR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Malaysia
|
Taiwan (Province of China)
|
Thailand
|
United States of America
|
|
PARAMETRIC INFO
|
| Standard Supported |
IEEE802.3at |
| Maximum Duty Cycle (%) |
6.7 |
| Maximum Oscillating Frequency (Hz) |
400000 |
| Maximum Input Voltage (V) |
3.6 |
| Minimum Input Voltage (V) |
3 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-40 |
| Programmability |
Yes |
| Type |
PSE Controller |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
TSSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
9.8(Max) |
| Package Width (mm) |
4.5(Max) |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
9.8(Max) |
| Package Overall Width (mm) |
6.6(Max) |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Thin Shrink Small Outline Package |
| Package Family Name |
SOP |
| Jedec |
MO-153AE |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

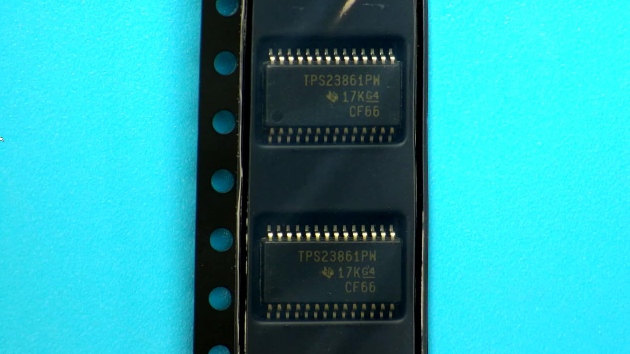

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Reel Diameter (in) |
13 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Packaging Document |
Link to Datasheet |
|
|

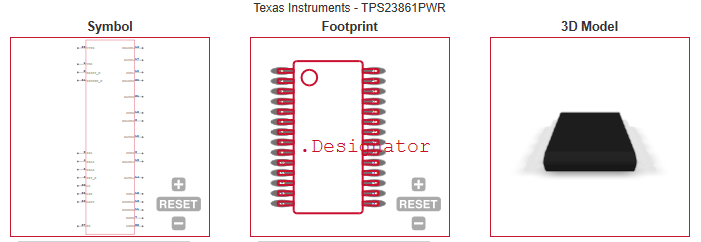

ECAD MODELS
|
|
|
APPLICATIONS
|
• Ethernet switches and routers
|
• Surveillance NVR and DVRs
|
• Residential gateways
|
• PoE Pass-Through systems
|
• Wireless backhaul
|
|
