• Wide input voltage range: 2.7-V to 19-V– 21-V Absolute maximum
|
• Low On-Resistance: Ron = 89-mΩ (typical)
|
• Active high enable input with adjustable undervoltage lockout (UVLO)
|
• Immune to Electrical Fast Transients (IEC 61000-4-4)
|
• Adjustable output slew rate control (dVdt)
|
• Overtemperature protection (OTP)
|
• Fault indication pin (FLT)
|
• UL 2367 recognition (pending)
|
• IEC 62368 CB certification (pending)
|
• Small footprint: 4.91 mm x 3.9 mm SOIC package
|
• Overvoltage protection options available:– Fast overvoltage clamp (3.8-V, 5.7-V and 13.8-V pin-selectable thresholds) with a response time of 5-μs (typical)– Adjustable overvoltage lockout (OVLO) with a response time of 1.3-μs (typical)
|
|
| CATALOG |
TPS259620DDAR PARAMETRIC INFO
|
TPS259620DDAR PACKAGE INFO
|
TPS259620DDAR MANUFACTURING INFO
|
TPS259620DDAR PACKAGING INFO
|
TPS259620DDAR ECAD MODELS
|
TPS259620DDAR APPLICATIONS
|
|
PARAMETRIC INFO
|
| Number of Channels |
1 |
| Fault Management |
Latched Off |
| External Sense Resistor |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Maximum Operating Supply Voltage (V) |
19 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
HSOIC EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.55(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.7(Max) |
| Seated Plane Height (mm) |
1.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Jedec |
MS-012-BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Lead Finish(Plating) |
Matte Sn |
|
|

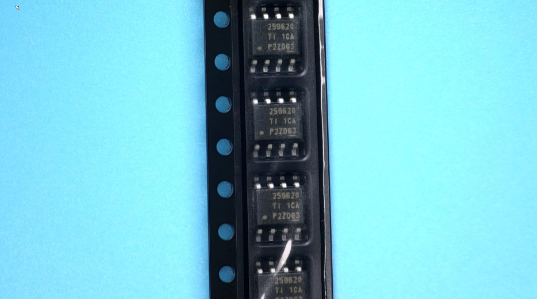

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
|

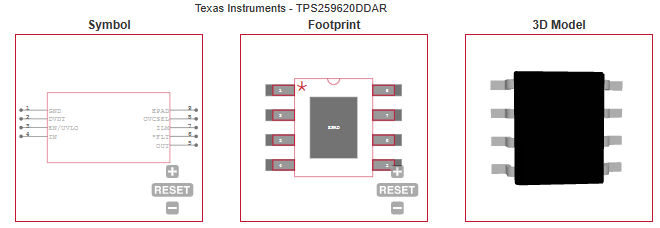

ECAD MODELS
|
|
|
APPLICATIONS
|
• Energy meters
|
• UL 60335-1 15-W LPC in Appliances– Refrigerators– Dishwashers– Washing machine and dryers
|
• Set-top boxes
|
• IP Network cameras
|
|
