• 4.2-V to 60-V Operating voltage, 62-V absolute maximum
|
• Integrated reverse input polarity protection downto –60 V– Zero additional components required
|
• Integrated back to back MOSFETs with 150-mΩtotal RON
|
| • 0.1-A to 2.23-A Adjustable current limit(±5% accuracy at 1 A) |
| • Functional safety capable– Documentation available to aid functional safety system design |
| • Load protection during Surge (IEC 61000-4-5)with minimum external components |
| • IMON current indicator output (±8.5% accuracy) |
| • Low quiescent current, 300-µA in operating, 20-µA in shutdown |
| • Adjustable UVLO, OVP cut off, output slew rate control |
| • Reverse current blocking |
| • Fixed 38-V overvoltage clamp (TPS26602 only) |
| • Available in easy-to-use 16-Pin HTSSOP and 24-Pin VQFN packages |
| • Selectable current-limiting fault response options(Auto-Retry, Latch Off, Circuit Breaker Modes) |
| • UL 2367 Recognized– File No. 169910– RILIM ≥ 5.36 kΩ (2.35-A maximum) |
| • UL60950 - Safe during single point failure test– Open/Short ILIM detection |
| |
| CATALOG |
| TPS26600PWPR COUNTRY OF ORIGIN |
TPS26600PWPR PARAMETRIC INFO
|
TPS26600PWPR PACKAGE INFO
|
TPS26600PWPR MANUFACTURING INFO
|
TPS26600PWPR PACKAGING INFO
|
TPS26600PWPR EACD MODELS
|
| TPS26600PWPR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| Type |
Positive Voltage |
| Number of Channels |
1 |
| External FET |
N-Channel |
| Fault Management |
Auto-Retry |
| External Sense Resistor |
No |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| PGOOD Output Logic |
Active Low |
| Maximum Supply Current (mA) |
0.39 |
| Minimum Operating Supply Voltage (V) |
4.2 |
| Maximum Operating Supply Voltage (V) |
55 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
HTSSOP EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
5.1(Max) |
| Package Width (mm) |
4.5(Max) |
| Package Height (mm) |
1.05(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.1(Max) |
| Package Overall Width (mm) |
6.6(Max) |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Heat Sinked Thin Shrink Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

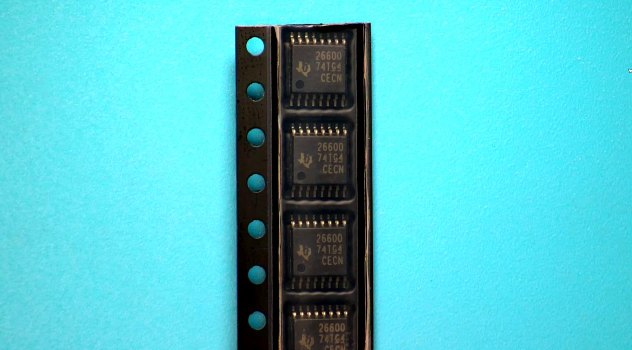

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.4 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Programmable logic controller
|
| • Distributed Control System (DCS) |
| • Control and automation |
| • Redundant supply ORing |
| • Industrial surge protection |
|
| |
