| • Wide supply voltage range: 1.8 V to 18 V |
| • Adjustable threshold: down to 400 mV |
• High threshold accuracy:
– 1.0% over temperature
– 0.25% (Typical)
|
| • Low quiescent current: 5.5 µA (Typical)
|
| • Open-drain outputs for overvoltage and
undervoltage detection |
| • Internal hysteresis: 5.5 mV (Typ) |
| • Temperature range: –40°C to 125°C
|
• Packages:
– SOT-6
– 1.5-mm × 1.5-mm WSON-6 |
|
| CATALOG |
| TPS3700DDCT COUNTRY OF ORIGIN |
| TPS3700DDCT PARAMETRIC INFO |
| TPS3700DDCT PACKAGE INFO |
| TPS3700DDCT MANUFACTURING INFO |
| TPS3700DDCT PACKAGING INFO |
| TPS3700DDCT ECAD MODELS |
| TPS3700DDCT FUNCTIONAL BLOCK DIAGRAM |
| TPS3700DDCT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Philippines |
| Thailand |
| Malaysia |
|
| PARAMETRIC INFO |
| Output Driver |
Active Low/Open Drain |
| Manual Reset |
No |
| Watchdog Timer |
No |
| Number of Supervisors |
2 |
| Typical Reset Threshold Voltage (V) |
0.4 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Chip Enable Signals |
No |
| Power Fail Detection |
No |
| Battery Backup Switching |
No |
| Maximum Operating Supply Voltage (V) |
18 |
| Minimum Reset Threshold Voltage (V) |
0.396 |
| Maximum Reset Threshold Voltage (V) |
0.404 |
| Maximum Supply Current (uA) |
7(Typ) |
| Minimum Operating Supply Voltage (V) |
1.8 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Type |
Voltage Detector |
| Programmability |
No |
|
|
| PACKAGE INFO |
| Supplier Package |
TSOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Thin Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-193AA |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

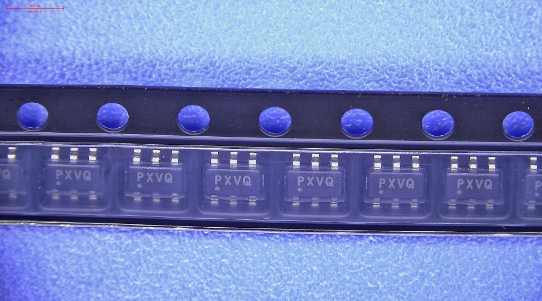

| PACKAGING INFO |
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Reel Diameter (in) |
7.05 |
| Reel Width (mm) |
8.4 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
|

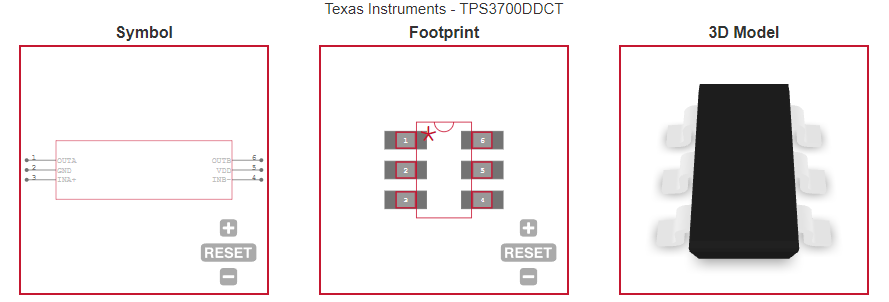

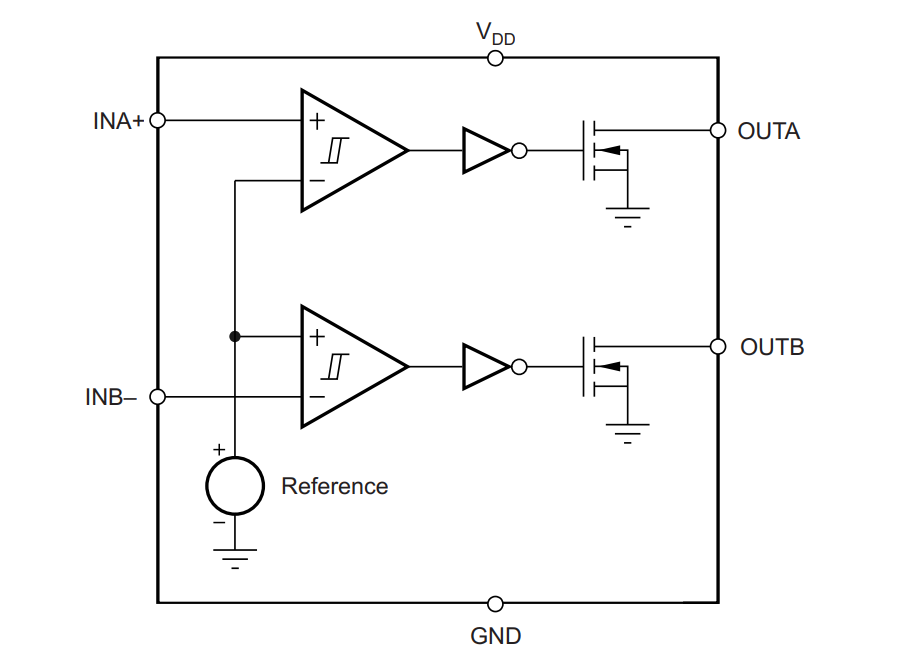

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Industrial control systems |
| • Automotive systems |
| • Embedded computing modules |
| • DSP, microcontroller, or microprocessor
applications
|
| • Notebook and desktop computers |
| • Portable- and battery-powered products |
| • FPGA and ASIC applications |
| |
| |
