• VR12.1 serial VID (SVID) compliant
|
• 1- or 2-phase operation
|
• Supports only zero load line applications
|
• 8-Bit DAC output range: 0.25 V to 1.52 V
|
• Optimized efficiency at light and heavy loads
|
• 8 independent levels of overshoot reduction (OSR) and undershoot reduction (USR)
|
|
| CATALOG |
TPS51623RSMR COUNTRY OF ORIGIN
|
TPS51623RSMR PARAMETRIC INFO
|
TPS51623RSMR PACKAGE INFO
|
TPS51623RSMR MANUFACTURING INFO
|
TPS51623RSMR PACKAGING INFO
|
TPS51623RSMR ECAD MODELS
|
TPS51623RSMR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Philippines
|
Malaysia
|
|
PARAMETRIC INFO
|
| Topology |
Step Down |
| Number of Outputs |
1 |
| Maximum Switching Frequency (kHz) |
1000 |
| Output Voltage (V) |
0.5 to 1.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Maximum Input Voltage (V) |
28 |
| Minimum Input Voltage (V) |
4.5 |
| Synchronous Rectifier |
Yes |
| Synchronous Clock |
No |
| Minimum Switching Frequency (kHz) |
300 |
| Maximum Output Current (A) |
60 |
| Programmability |
No |
| Typical Quiescent Current (mA) |
0.5 |
|
|

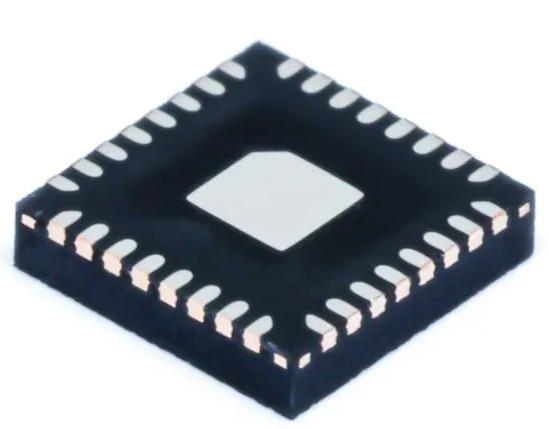

PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
32 |
| Lead Shape |
No Lead |
| PCB |
32 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
4.15(Max) |
| Package Width (mm) |
4.15(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.15(Max) |
| Package Overall Width (mm) |
4.15(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Adapter |
| • Battery |
| • NVDC |
| • 5-V or 12-V Rails |
| |
