• 5.5V to 36V wide input voltage range
|
• Up to 1A continuous (1.2A peak) output current
|
• High efficiency up to 95% enabled by 110mΩ integrated MOSFET switch
|
• Wide output voltage range: adjustable down to 1.22V with 1.5% initial accuracy
|
• Internal compensation minimizes external parts count
|
|
| CATALOG |
TPS5410DR COUNTRY OF ORIGIN
|
TPS5410DR PARAMETRIC INFO
|
TPS5410DR PACKAGE INFO
|
TPS5410DR MANUFACTURING INFO
|
TPS5410DR PACKAGING INFO
|
TPS5410DR ECAD MODELS
|
TPS5410DR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Mexico
|
Malaysia
|
|
PARAMETRIC INFO
|
| Isolation |
Non-Isolated |
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
5.5 |
| Maximum Input Voltage (V) |
36 |
| Output Voltage (V) |
1.22 to 31 |
| Maximum Output Current (A) |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
600 |
| Efficiency (%) |
95 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
5.5 to 36 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
2000 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|

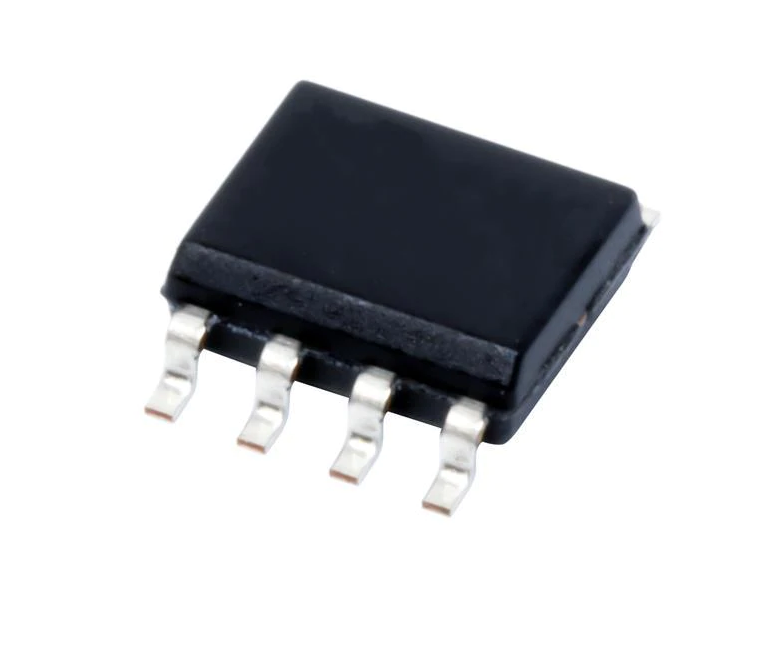

PACKAGE INFO
|
| Supplier Package |
SOIC |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
3.98(Max) |
| Package Height (mm) |
1.5(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.19(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1|2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
75 |
| Packaging Document |
Link to Datasheet |
|
|

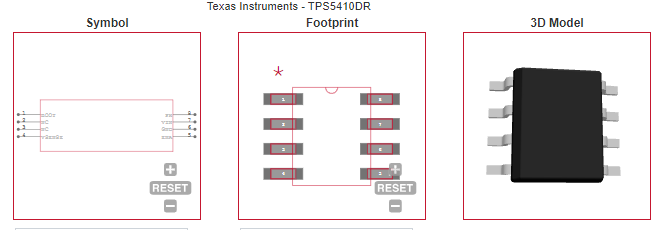

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Consumer: set-top box, DVD, LCD displays |
| • Industrial and car audio power supplies |
| • Battery chargers, high-power LED supply |
| • 12V and 24V distributed power systems |
| |
