• High Efficiency at Light Loads with Pulse Skipping Eco-mode™
|
• 92-mΩ High-Side MOSFET
|
• 146 μA Operating Quiescent Current and 2 μA Shutdown Current
|
• 100 kHz to 2.5 MHz Fixed Switching Frequency
|
• Synchronizes to External Clock
|
• Low Dropout at Light Loads with Integrated BOOT Recharge FET
|
• Adjustable UVLO Voltage and Hysteresis
|
• 0.8 V 1% Internal Voltage Reference
|
|
| CATALOG |

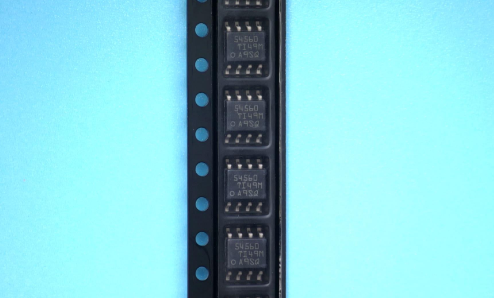

TPS54560DDAR COUNTRY OF ORIGIN
|
TPS54560DDAR PARAMETRIC INFO
|
TPS54560DDAR PACKAGE INFO
|
TPS54560DDAR MANUFACTURING INFO
|
TPS54560DDAR PACKAGING INFO
|
TPS54560DDAR ECAD MODELS
|
TPS54560DDAR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
Mexico
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
60 |
| Output Voltage (V) |
0.8 to 58.8 |
| Maximum Output Current (A) |
5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
2500 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4.5 to 60 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
146 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
HSOIC EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.55(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.7(Max) |
| Seated Plane Height (mm) |
1.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Jedec |
MS-012-BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au|AuAg |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
12.8 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Industrial Automation and Motor Control |
| • Vehicle Accessories: GPS, Entertainment |
| • USB Dedicated Charging Ports and Battery Chargers |
| • 12 V, 24 V and 48 V Industrial, Automotive and Communications Power Systems |
| |
