| • TPS562219: 2-A Converter With Integrated 133-mΩ and 80-mΩ FETs |
| • TPS563219: 3-A Converter With Integrated
68-mΩ and 39-mΩ FETs |
| • D-CAP2™ Mode Control with 650-kHz Switching Frequency |
| • Input Voltage Range: 4.5 V to 17 V |
| • Output Voltage Range: 0.76 V to 7 V |
| • 650-kHz Switching Frequency |
| • Low Shutdown Current Less than 10 µA |
| • 1% Feedback Voltage Accuracy (25°C) |
| • Startup from Pre-Biased Output Voltage |
| • Cycle By Cycle Overcurrent Limit |
| • Hiccup-mode Under Voltage Protection |
| • Non-latch OVP, UVLO and TSD Protections |
| • Adjustable Soft Start |
| • Power Good Output |
|
| CATALOG |

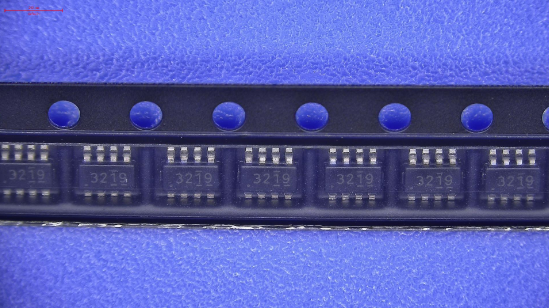

| TPS563219DDFR COUNTRY OF ORIGIN |
| TPS563219DDFR PARAMETRIC INFO |
| TPS563219DDFR PACKAGE INFO |
| TPS563219DDFR MANUFACTURING INFO |
| TPS563219DDFR PACKAGING INFO |

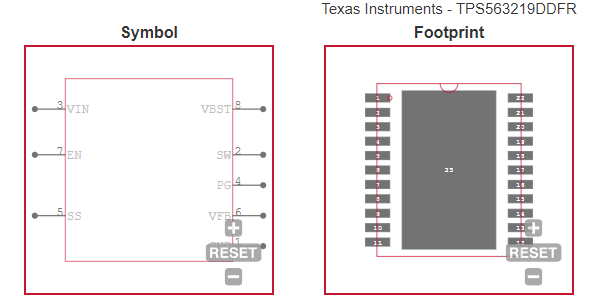

| TPS563219DDFR ECAD MODELS |

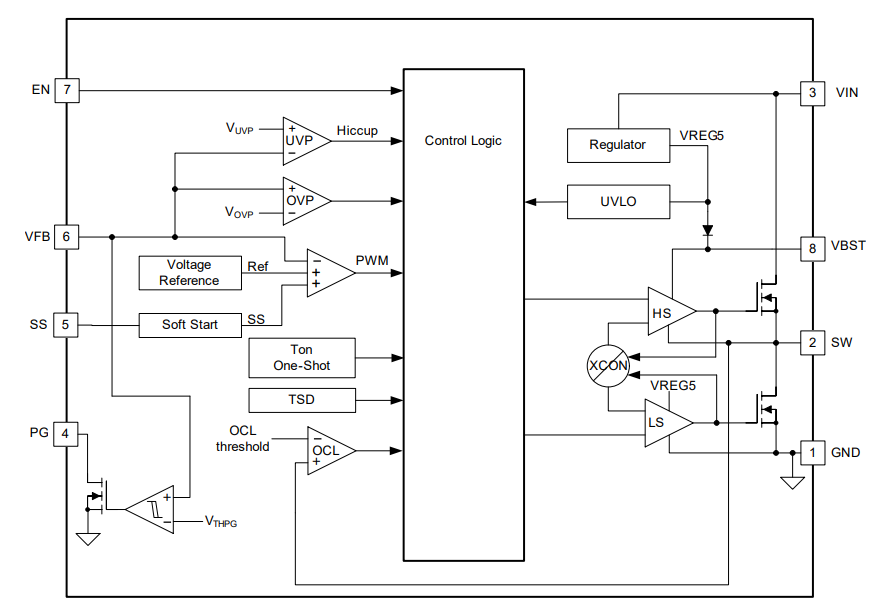

| TPS563219DDFR FUNCTIONAL BLOCK DIAGRAM |
| TPS563219DDFR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Type |
Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
17 |
| Output Voltage (V) |
0.76 to 7 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
650 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
4.5 to 17 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
650 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Pin Count |
8 |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
2.95(Max) |
| Package Width (mm) |
1.65(Max) |
| Package Height (mm) |
1(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
| |
| ECAD MODELS |
 |
|
| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Digital TV Power Supply |
| • High Definition Blu-ray Disc™ Players |
| • Networking Home Terminal |
| • Digital Set Top Box (STB) |
|
