• D-CAP2™ Mode Enables Fast Transient Response
|
• Low Output Ripple and Allows Ceramic Output Capacitor
|
• Wide VIN Input Voltage Range: 4.5 V to 18 V
|
• Output Voltage Range: 0.6 V to 7 V
|
• Highly Efficient Integrated FETs Optimized for Lower Duty Cycle Applications–68 mΩ (High-Side) and 37 mΩ (Low-Side)
|
• High Efficiency, Less Than 10 µA at Shutdown
|
• High Initial Band-Gap Reference Accuracy
|
• Prebiased Soft Start
|
|
| CATALOG |
TPS56528DDAR COUNTRY OF ORIGIN
|
TPS56528DDAR PARAMETRIC INFO
|
TPS56528DDAR PACKAGE INFO
|
TPS56528DDAR MANUFACTURING INFO
|
TPS56528DDAR PACKAGING INFO
|
TPS56528DDAR ECAD MODELS
|
TPS56528DDAR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Mexico
|
China
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
18 |
| Output Voltage (V) |
0.6 to 7 |
| Maximum Output Current (A) |
5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Maximum Switching Frequency (kHz) |
650 |
| Switching Regulator |
Yes |
| Operating Supply Voltage Range (V) |
4.5 to 18 |
| Output Type |
Adjustable |
| Typical Quiescent Current (uA) |
250 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
HSOIC EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.55(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.7(Max) |
| Seated Plane Height (mm) |
1.7(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SO |
| Jedec |
MS-012-BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|

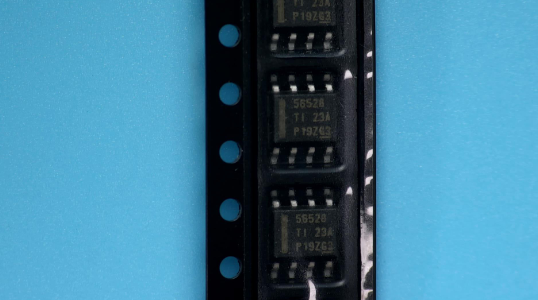

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
|
| |

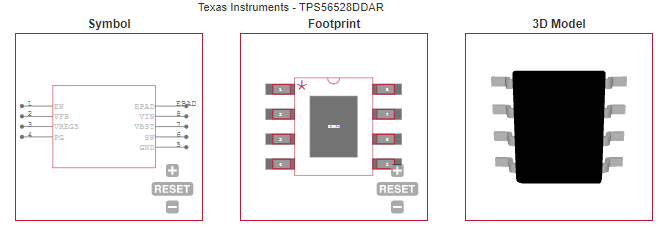

| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Wide Range of Applications for Low Voltage Systems– Digital TV Power Supply– High Definition Blu-ray Disc™ Players– Networking Home Terminals– Digital Set-Top Boxes (STB) |
| |
