• DCS-Control topology
|
• Up to 95% efficiency
|
• 26-mΩ and 26-mΩ internal power MOSFETs
|
| • 2.4-V to 5.5-V input voltage range
|
| • 4-μA operating quiescent current |
| • 1% output voltage accuracy |
| • 4-MHz switching frequency |
| • Power save mode for light-load efficiency |
| • A forced-PWM version for CCM operation |
| • 100% duty cycle for lowest dropout |
| • Active output discharge |
| • Power good output |
| • Thermal shutdown protection |
| • Hiccup short-circuit protection |
| • Available in 6-pin WCSP and PowerWCSP with 0.4-mm pitch |
| • 0.3-mm tall YWC package supports embedded systems |
| • Supports 12 mm2 solution size |
| • Supports < 0.6 mm height solution |
| • Create a custom design using the TPS62088 with the WEBENCH® Power Designer |
| |
| CATALOG |
TPS6208833YFPR PARAMETRIC INFO
|
TPS6208833YFPR PACKAGE INFO
|
TPS6208833YFPR MANUFACTURING INFO
|
TPS6208833YFPR PACKAGING INFO
|
TPS6208833YFPR EACD MODELS
|
| TPS6208833YFPR APPLICATIONS |
|
PARAMETRIC INFO
|
| Minimum Operating Temperature (°C) |
-40 |
|
|
PACKAGE INFO
|
| Supplier Package |
DSBGA |
| Basic Package Type |
Ball Grid Array |
| Pin Count |
6 |
| Lead Shape |
Ball |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.4 |
| Package Length (mm) |
1.19(Max) |
| Package Width (mm) |
0.79(Max) |
| Package Height (mm) |
0.31(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.5(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Die Size Ball Grid Array |
| Package Family Name |
BGA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
SnAgCu |
|
|

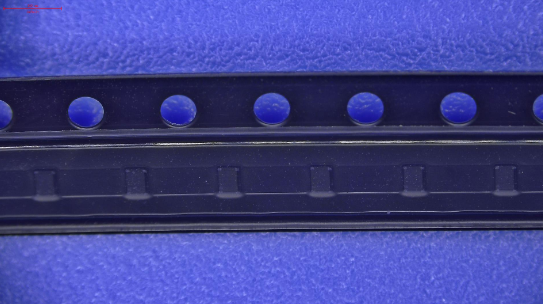

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • Solid-state drives |
| • Wearable products |
| • Smartphones |
| • Camera modules |
• Optical modules
|
| |
