• DCS-Control™ topology
|
• Input voltage range: 3 V to 17 V
|
• Up to 3-A output current
|
| • Adjustable output voltage from 0.9 V to 6 V
|
| • Pin-selectable output voltage (nominal, + 5%) |
| • Programmable soft start and tracking |
| • Seamless power save mode transition |
| • Quiescent current of 17 µA (typical) |
| • Selectable operating frequency |
| • Power-good output |
| • 100% duty cycle mode |
| • Short circuit protection |
| • Overtemperature protection |
|
| CATALOG |
| TPS62130RGTT COUNTRY OF ORIGIN |
TPS62130RGTT PARAMETRIC INFO
|
TPS62130RGTT PACKAGE INFO
|
TPS62130RGTT MANUFACTURING INFO
|
TPS62130RGTT PACKAGING INFO
|
TPS62130RGTT EACD MODELS
|
| TPS62130RGTT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| China |
| Thailand |
| Malaysia |
|
PARAMETRIC INFO
|
| type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
3 |
| Maximum Input Voltage (V) |
17 |
| Output Voltage (V) |
0.9 to 6 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Regulation Condition Change In Line |
14V |
| Switching Frequency (kHz) |
2500(Typ) |
| Switching Regulator |
yes |
| Operating Supply Voltage (V) |
3 to 17 |
| Output Type |
Adjustable |
| Tradename |
DCS-Control™ |
| Load Regulation |
0.05%/A(Typ) |
| Line Regulation |
0.02%/V(Typ) |
| Typical Quiescent Current (uA) |
17 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
4.2 |
|
|
PACKAGE INFO
|
| Supplier packaging |
VQF |
| Basic package type |
Non-Lead-Frame SMT |
| Number of pins |
16 |
| Pin shape |
No Lead |
| PCB |
16 |
| ears |
N/R |
| Pin spacing (mm) |
0.5 |
| Package length (mm) |
3.1(Max) |
| Package width (mm) |
3.1(Max) |
| Package height (mm) |
0.95(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.1(Max) |
| Package Overall Width (mm) |
3.1(Max) |
| Package Overall Height (mm) |
1(Max) |
| Mounting surface height (mm) |
1(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package series name |
QFN |
| JEDEC |
MO-220 |
| Package outline |
Link to datasheet |
| Maximum PACKAGE_DIMENSION_H |
0.95 |
| Minimum PACKAGE_DIMENSION_H |
0.8 |
| Maximum PACKAGE_DIMENSION_L |
3.1 |
| Minimum PACKAGE_DIMENSION_L |
2.9 |
| Maximum PACKAGE_DIMENSION_W |
3.1 |
| Minimum PACKAGE_DIMENSION_W |
2.9 |
| Maximum Diameter |
N/R |
| Minimum Diameter |
N/R |
| Maximum Seated_Plane_Height |
1 |
|
|
MANUFACTURING INFO
|
| MSL |
1|2 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

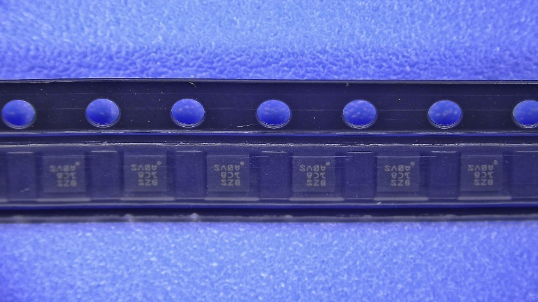

PACKAGING INFO
|
| Packaging Suffix |
T |
| Package |
Tape and reel packaging |
| Packing quantity |
250 |
| Reel Diameter (in) |
7.09 |
| Reel Width (mm) |
12.4|12.5 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q2 |
| packaging type file |
Link to datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Standard 12-V rail supplies
|
| • POL supply from single or multiple Li-ion battery |
| • Embedded systems |
| • LDO replacement |
| • Mobile PCs, tablets, modems, cameras |
| |
| |
