• Available as an integrated-inductor power module:TPSM82821, TPSM82822, and TPSM82823
|
• DCS-Control topology
|
• 1% feedback or output voltage accuracy (full temperature range)
|
| • Up to 97% efficiency |
| • 26mΩ and 25mΩ internal power MOSFETs |
| • 2.4V to 5.5V input voltage range |
| • 4μA operating quiescent current |
| • 2.2MHz switching frequency |
| • 0.6V to 4V adjustable output voltage |
| • Power save mode for light load efficiency |
| • 100% duty cycle for lowest dropout |
| • Active output discharge |
| • Power-good output |
| • Thermal shutdown protection |
| • Hiccup short-circuit protection |
| • A forced-PWM version for CCM operation |
| • Create a custom design using the TPS6282x with the WEBENCH® Power Designer |
| |
| CATALOG |
| TPS62826DMQR COUNTRY OF ORIGIN |
TPS62826DMQR PARAMETRIC INFO
|
TPS62826DMQR PACKAGE INFO
|
TPS62826DMQR MANUFACTURING INFO
|
TPS62826DMQR PACKAGING INFO
|
TPS62826DMQR EACD MODELS
|
| TPS62826DMQR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| Philippines |
| China |
|
PARAMETRIC INFO
|
| Type |
Synchronous Step Down |
| Number of Outputs |
1 |
| Minimum Input Voltage (V) |
2.4 |
| Maximum Input Voltage (V) |
5.5 |
| Output Voltage (V) |
0.6 to 4 |
| Maximum Output Current (A) |
3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switching Frequency (kHz) |
2200(Typ) |
| Efficiency (%) |
97 |
| Switching Regulator |
Yes |
| Operating Supply Voltage (V) |
2.4 to 5.5 |
| Output Type |
Adjustable |
| Load Regulation |
0.1%/A(Typ) |
| Typical Quiescent Current (uA) |
4 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Switch Current (A) |
4.3 |
|
|
PACKAGE INFO
|
| Supplier Package |
VSON-HR |
| Pin Count |
6 |
| PCB |
6 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
1.55(Max) |
| Package Width (mm) |
1.55(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Family Name |
SON |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

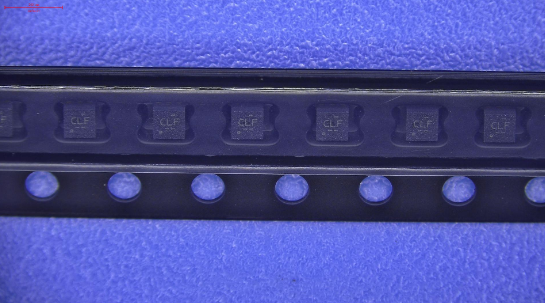

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|

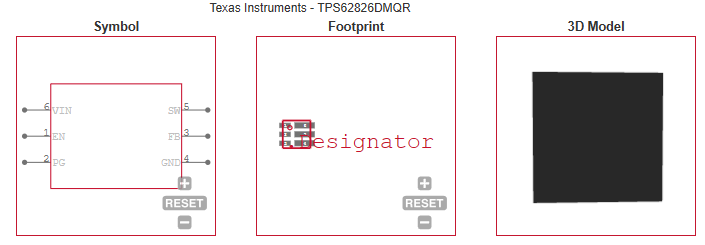

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Solid state drive
|
| • Portable electronics |
| • Analog security and IP network cameras |
| • Industrial PC |
| • Multifunction printers |
| • Generic point of load |
|
| |
