| • Ultra-low IQ: 1 μA |
| • Reverse current protection |
| • Low ISHUTDOWN: 150 nA |
| • Input voltage range: 2.7 V to 30 V |
| • Supports 200-mA peak output |
| • 2% accuracy over temperature |
| • Available in fixed-output voltages:
1.2 V to 6.5 V |
| • Thermal shutdown and overcurrent protection |
| • Packages: SOT-23-5, WSON-6
|
| |
| CATALOG |
| TPS70933DBVR COUNTRY OF ORIGIN |
| TPS70933DBVR PARAMETRIC INFO |
| TPS70933DBVR PACKAGE INFO |
| TPS70933DBVR MANUFACTURING INFO |
| TPS70933DBVR PACKAGING INFO |
| TPS70933DBVR ECAD MODELS |
| TPS70933DBVR FUNCTIONAL BLOCK DIAGRAM
|
| TPS70933DBVR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Malaysia |
| Mexico |
| Philippines |
| Taiwan (Province of China) |
| Thailand |
|
| PARAMETRIC INFO |
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.15 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Regulation Condition Change In Load |
149.9mA |
| Regulation Condition Change In Line |
27.3V |
| Junction to Ambient |
212.1°C/W |
| Junction to Case |
78.5°C/W |
| Polarity |
Positive |
| Special Features |
Reverse Current Protection |
| Load Regulation |
20mV(Typ) |
| Line Regulation |
3mV(Typ) |
| Maximum Dropout Voltage @ Current (V) |
0.65@50mA|1.4@150mA |
| Minimum Input Voltage (V) |
2.7 |
| Maximum Input Voltage (V) |
30 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
0.001 |
| Typical Dropout Voltage @ Current (V) |
0.295@50mA|0.96@150mA |
| Accuracy (%) |
±1 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Typical Ground Current @ Full Load (mA) |
0.35 |
| Typical PSRR (dB) |
80 |
| Typical Output Capacitance (uF) |
2(Min) |
| Typical Output Noise Voltage (uVrms) |
190 |
| Pass Element Type |
PMOS |
| Output Capacitor Type |
Ceramic |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
4 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn|Au |
| Under Plating Material |
N/A|Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/A |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
9 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| Packaging Document |
Link to Datasheet |
|
| |

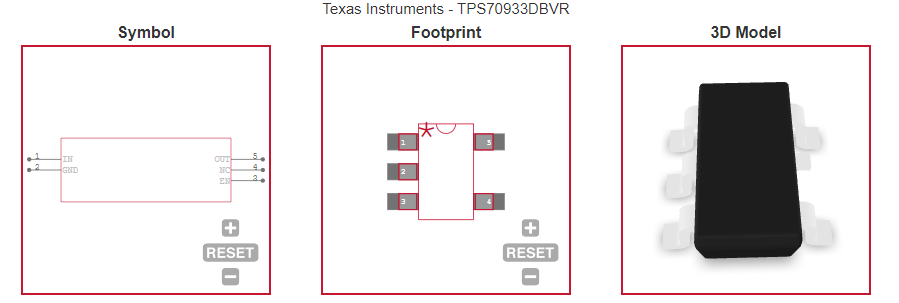

| ECAD MODELS |
 |
|

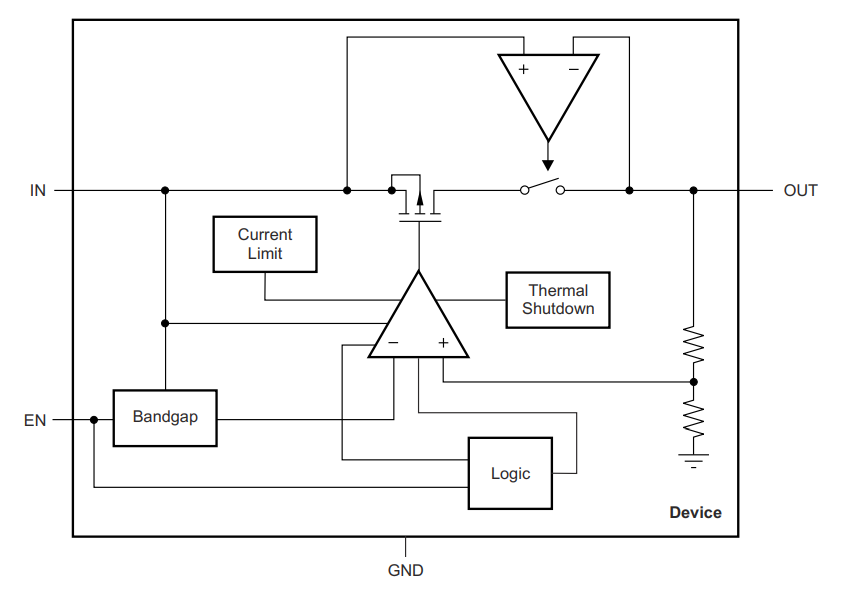

| FUNCTIONAL BLOCK DIAGRAM
|
 |
|
| APPLICATIONS |
| • Smoke and heat detectors |
| • Thermostats |
| • Motion detectors (PIR, uWave, and so forth) |
| • Cordless power tools |
| • Appliance battery packs |
| • Electricity meters |
| • Water meters |
|
