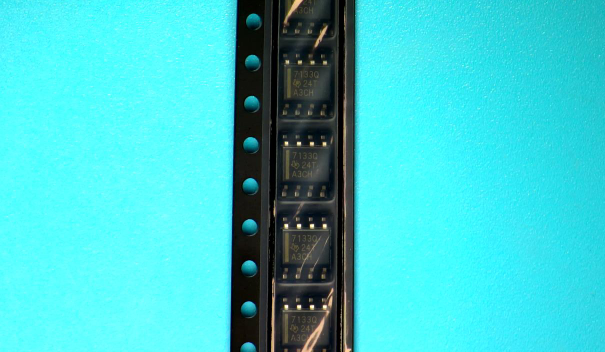

TPS7133QDR Texas Instruments IC REG LINEAR 3.3V 500MA 8SOIC

label:
2024/08/8 149
TPS7133QDR Texas Instruments 	IC REG LINEAR 3.3V 500MA 8SOIC


CATALOG
TPS7133QDR COUNTRY OF ORIGIN
TPS7133QDR PARAMETER INFO
TPS7133QDR PACKAGING INFO
TPS7133QDR MANUFACTURING INFO
TPS7133QDR TYPE OF PACKAGING
TPS7133QDR ECAD MODELS


COUNTRY OF ORIGIN
Taiwan (Province of China)


PARAMETER INFO
type LDO
Number of Outputs 1
Maximum Output Current (A) 0.5
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Output Type Fixed
Output Voltage Range (V) 1.8 to 10
Polarity Positive
Special Features Power Good Signal|Sleep Mode
Load Regulation 60mV
Line Regulation 20mV
Maximum Dropout Voltage @ Current (V) 0.007@10mA|0.06@100mA|0.3@500mA
Maximum Power Dissipation (mW) 725
Minimum Input Voltage (V) 3.77
Maximum Input Voltage (V) 10
Output Voltage (V) 3.3
Typical Quiescent Current (mA) 0.285
Typical Dropout Voltage @ Current (V) 0.0045@10mA|0.047@100mA|0.235@500mA
Accuracy (%) ±2
Vendor Temperature Grade Extended Industrial
Typical PSRR (dB) 54
Typical Output Capacitance (uF) 10(Min)
Typical Output Noise Voltage (uVrms) 274


PACKAGING INFO
Supplier Packaging SOIC
Basic package types Lead-Frame SMT
Number of Pins 8
Pin shape Gull-wing
PCB 8
Ear piece N/R
Pin spacing (mm) 1.27
Package length (mm) 5(Max)
Package width (mm) 3.98(Max)
Package height (mm) 1.5(Max)
Package diameter (mm) N/R
Package Overall Length (mm) 5(Max)
Package Overall Width (mm) 6.19 (Max)
Package Overall Height (mm) 1.75(Max)
Mounting surface height (mm) 1.75(Max)
Install Surface Mount
Package weight (g) not applicable
Packaging materials Plastic
package instruction Small Outline IC
Package Series Name SO
JEDEC MS-012AA
Package Outline Link to data sheet


MANUFACTURING INFO
MSL 1
Maximum reflow temperature (°C) 260
Reflow time (seconds) 30
Reflow cycles 3
standard J-STD-020D
Reflow temperature source Link to data sheet
Maximum wave soldering temperature (°C) N/R
Wave soldering time (seconds) N/R
Lead Finish(Plating) Au
Plating materials Pd over Ni
Terminal base material Cu Alloy
Number of Wave Cycles N/R


TYPE OF PACKAGING
Packaging Suffix R
Package Tape and Reel Packaging
Packing quantity 2500
Reel Diameter (in) 13
Reel Width (mm) 12.4
Tape Pitch (mm) 8
Tape Width (mm) 12
Component Orientation Q1
Package Type File Link to data sheet

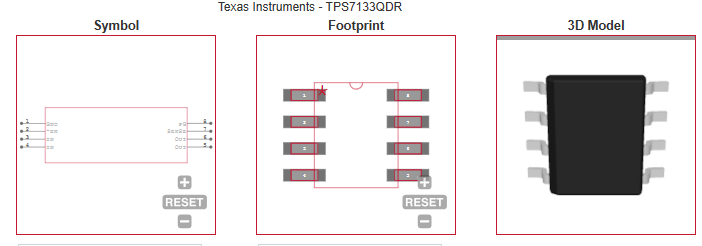

ECAD MODELS


Продукт RFQ
