• Stable With or Without Capacitors of All Types
|
• Input Voltage Range of 1.7 V to 5.5 V
|
• Ultralow Dropout Voltage: 30 mV Typical (150-mA Load)
|
• Low Noise: 30 μVRMS Typical (10 kHz to 100 kHz)
|
• 0.5% Initial Accuracy
|
| • Less Than 1-μA Maximum IQ in Shutdown Mode |
| • 1% Overall Accuracy Over Line, Load, and Temperature |
| • Excellent Load Transient Response—With or Without Optional Output Capacitor |
|
| CATALOG |
TPS73133DBVT COUNTRY OF ORIGIN
|
TPS73133DBVT PARAMETRIC INFO
|
TPS73133DBVT PACKAGE INFO
|
TPS73133DBVT MANUFACTURING INFO
|
TPS73133DBVT PACKAGING INFO
|
TPS73133DBVT ECAD MODELS
|
TPS73133DBVT APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
Philippines
|
China
|
| United States of America |
| Thailand |
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.15 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Polarity |
Positive |
| Special Features |
Current Limit|Shutdown |
| Process Technology |
BiCMOS |
| Load Regulation |
0.002%/mA(Typ) |
| Line Regulation |
0.01%/V(Typ) |
| Maximum Quiescent Current (mA) |
0.55 |
| Maximum Dropout Voltage @ Current (V) |
0.1@150mA |
| Minimum Input Voltage (V) |
1.7 |
| Maximum Input Voltage (V) |
5.5 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
0.4 |
| Typical Dropout Voltage @ Current (V) |
0.03@150mA |
| Accuracy (%) |
±0.5 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
58 |
| Typical Output Capacitance (uF) |
0(Min) |
| Typical Output Noise Voltage (uVrms) |
30 |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

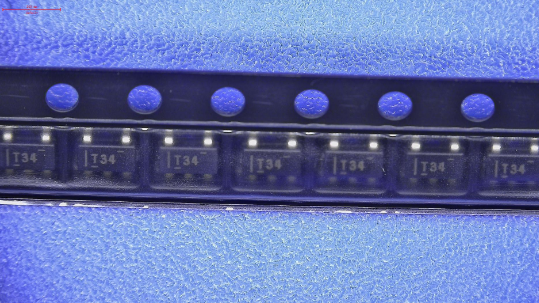

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Packaging Document |
Link to Datasheet |
|
|

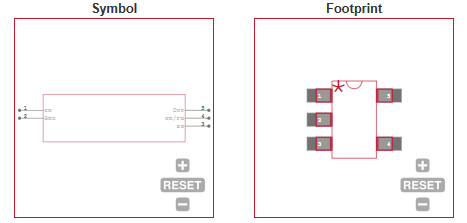

ECAD MODELS
|
|
|
APPLICATIONS
|
• Smart Grid and Energy
|
| • Building Automation
|
• Set-Top Boxes
|
• Medical Equipment
|
• Test and Measurement
|
| • Point-of-Sale Terminals |
| • Wireless Infrastructure |
| |
