• AEC-Q100 qualified for automotive applications:– Temperature grade 1: –40°C to +125°C, TA
|
• Device junction temperature: –40°C to 150°C
|
• Input voltage range: 1.5 V to 6.0 V
|
• Output voltage range:– Fixed option: 0.65 V to 5.0 V– Adjustable option: 0.55 V to 5.5 V
|
• High PSRR: 45 dB at 100 kHz
|
• Output accuracy: ±0.85% (25°C), ±1.5% maximum
|
• Power-good output options:– Open-drain and push-pull
|
• Ultra-low dropout:– 160 mV (max) at 500 mA (3.3 VOUT)
|
|
| CATALOG |
TPS74501PQWDRBRQ1 COUNTRY OF ORIGIN
|
TPS74501PQWDRBRQ1 PARAMETRIC INFO
|
TPS74501PQWDRBRQ1 PACKAGE INFO
|
TPS74501PQWDRBRQ1 MANUFACTURING INFO
|
TPS74501PQWDRBRQ1 PACKAGING INFO
|
TPS74501PQWDRBRQ1 ECAD MODELS
|
TPS74501PQWDRBRQ1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Adjustable |
| Output Voltage Range (V) |
<1.8|1.8 to 10 |
| Junction to Ambient |
55.5°C/W |
| Junction to Case |
70.7°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Shutdown Protection |
| Load Regulation |
0.03V/A(Typ) |
| Line Regulation |
2mV(Typ) |
| Maximum Quiescent Current (mA) |
0.032 |
| Minimum Input Voltage (V) |
1.5 |
| Maximum Input Voltage (V) |
6 |
| Output Voltage (V) |
0.55 to 5.5 |
| Typical Quiescent Current (mA) |
0.025 |
| Accuracy (%) |
±0.85 |
| Supplier Temperature Grade |
Automotive |
| Typical PSRR (dB) |
57 |
| Typical Output Capacitance (uF) |
1(Min) |
| Typical Output Noise Voltage (uVrms) |
53 |
|
|

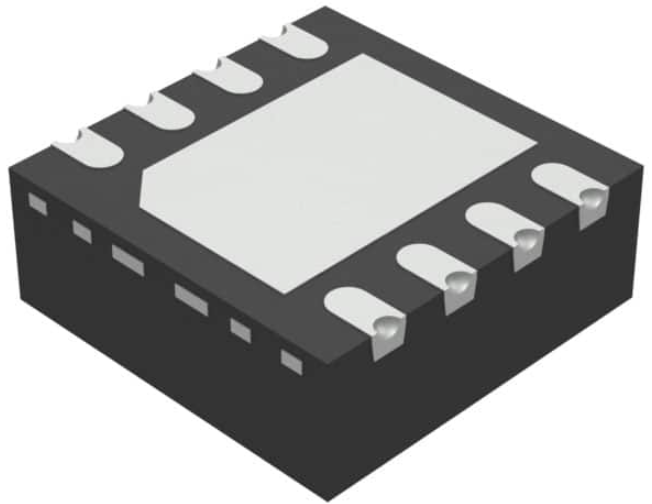

PACKAGE INFO
|
| Supplier Package |
VSON EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
No Lead |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3.15(Max) |
| Package Width (mm) |
3.15(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.15(Max) |
| Package Overall Width (mm) |
3.15(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Small Outline No Lead, Exposed Pad |
| Package Family Name |
SON |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
|
|
| ECAD MODELS |
 |
|
| APPLICATIONS |
| • Automotive head units |
| • Front and rear cameras |
| • Automotive cluster displays |
| • Telematics control units |
| • Medium, short range radar |
| |
