• 150-mA, low-dropout regulator
|
• Output voltage: 5 V, 3.8 V, 3.3 V, 3 V, 2.8 V,2.7 V, 2.5 V, 1.8 V, 1.6 V, and variable
|
• Dropout voltage, typically 300 mV at 150 mA
|
| • Thermal protection
|
| • Overcurrent limitation |
| • Less than 2-µA quiescent current in shutdown mode |
| • –40°C to 125°C operating junction temperature range |
| • 5-pin SOT-23 (DBV) package |
|
| CATALOG |
| TPS76301DBVR COUNTRY OF ORIGIN |
TPS76301DBVR PARAMETRIC INFO
|
TPS76301DBVR PACKAGE INFO
|
TPS76301DBVR MANUFACTURING INFO
|
TPS76301DBVR PACKAGING INFO
|
TPS76301DBVR ECAD MODELS
|
| TPS76301DBVR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| Thailand |
China
|
| Philippines |
| Taiwan (Province of China) |
|
PARAMETRIC INFO
|
| type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.15 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Adjustable |
| Output Voltage Range (V) |
<1.8|1.8 to 10 |
| Junction to ambient |
205.3°C/W |
| Junction to Case |
125.1°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Thermal Protection |
| Line Regulation |
0.07%/V |
| Maximum Quiescent Current (mA) |
0.1 |
| Maximum Power Dissipation (mW) |
555 |
| Minimum Input Voltage (V) |
2.7 |
| Maximum Input Voltage (V) |
10 |
| Output Voltage (V) |
1.5 to 6.5 |
| Typical Quiescent Current (mA) |
0.085 |
| Typical Dropout Voltage @ Current (V) |
0.3@150mA |
| Accuracy (%) |
±3 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
60 |
| Typical Output Noise Voltage (uVrms) |
140 |
| Pass Element Type |
PMOS |
| Output Capacitor Type |
Ceramic |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-23 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
5 |
| Pin shape |
Gull-wing |
| PCB |
5 |
| ears |
N/R |
| Pin spacing (mm) |
0.95 |
| Package length (mm) |
3.05(Max) |
| Package width (mm) |
1.75(Max) |
| Package height (mm) |
1.1 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Mounting surface height (mm) |
1.45(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
MO-178AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |

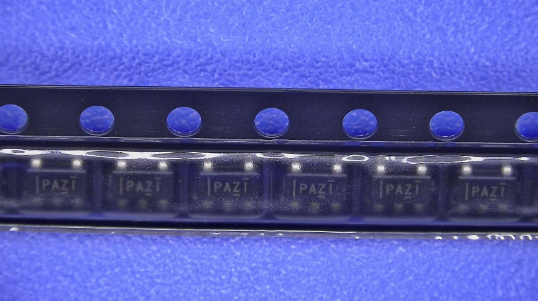

Tape and reel packaging |
| Packing quantity |
3000 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
8.4|9 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Component Orientation |
Q3 |
| packaging type file |
Link to datasheet |
|
|

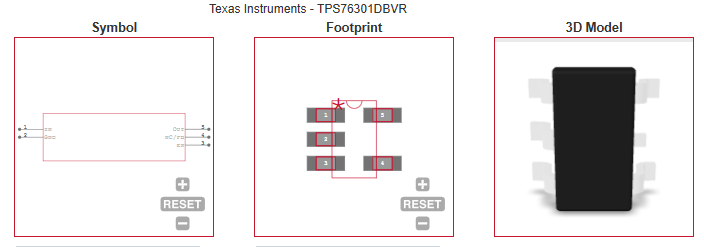

ECAD MODELS
|
|
|
APPLICATIONS
|
• Electricity meters
|
| • Solar inverters |
| • HVAC systems |
• Servo drives and motion control
|
| • Sensor transmitters |
| |
| |
