TPS76833QPWPRQ1 Texas Instruments IC REG LINEAR 3.3V 1A 20HTSSOP

label:
2024/01/11 305



• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
   – Device Temperature Grade 1:
   –40°C to 125°C Ambient Operating Temperature Range
   – Device HBM ESD Classification Level H2
   – Device CDM ESD Classification Level C4B
• 1-A Low-Dropout (LDO) Voltage Regulator
• Available in 1.8-V, 2.5-V, 3.3-V, and 5-V FixedOutput and an Adjustable Version
• Dropout Voltage Down to 230 mV at 1 A (TPS76850-Q1)
• Ultralow 85-μA Typical Quiescent Current
• Fast Transient Response
• 2% Tolerance Over Specified Conditions for Fixed-Output Versions
• Open-Drain Power Good (See TPS767xx-Q1 for Power-On Reset With 200-ms Delay Option)
• 20-Pin TSSOP (PWP) Package
• Thermal Shutdown Protection



CATALOG
TPS76833QPWPRQ1 Country of Origin
TPS76833QPWPRQ1 Parametric Info
TPS76833QPWPRQ1 Package Info
TPS76833QPWPRQ1 Manufacturing Info
TPS76833QPWPRQ1 Packaging Info
TPS76833QPWPRQ1 ECAD Models
TPS76833QPWPRQ1 Functional Block Diagrams
TPS76833QPWPRQ1 Applications



COUNTRY OF ORIGIN
Taiwan (Province of China)



PARAMETRIC INFO
Type LDO
Number of Outputs 1
Maximum Output Current (A) 1
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 125
Output Type Fixed
Output Voltage Range (V) 1.8 to 10
Junction to Ambient 32.6°C/W
Polarity Positive
Special Features Current Limit|Thermal Shutdown Protection
Load Regulation 3mV(Typ)
Line Regulation 0.01%(Typ)
Maximum Quiescent Current (mA) 0.125
Maximum Dropout Voltage @ Current (V) 0.575@1A
Minimum Input Voltage (V) 2.7
Maximum Input Voltage (V) 10
Output Voltage (V) 3.3
Typical Quiescent Current (mA) 0.085
Typical Dropout Voltage @ Current (V) 0.35@1A
Accuracy (%) ±2
Supplier Temperature Grade Automotive
Typical PSRR (dB) 60
Typical Output Capacitance (uF) 10(Min)
Typical Output Noise Voltage (uVrms) 55



PACKAGE INFO
Supplier Package HTSSOP EP
Basic Package Type Lead-Frame SMT
Pin Count 20
Lead Shape Gull-wing
PCB 20
Tab N/R
Pin Pitch (mm) 0.65
Package Length (mm) 6.6(Max)
Package Width (mm) 4.5(Max)
Package Height (mm) 1.05(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 6.6(Max)
Package Overall Width (mm) 6.6(Max)
Package Overall Height (mm) 1.2(Max)
Seated Plane Height (mm) 1.2(Max)
Mounting Surface Mount
Package Weight (g) N/A
Package Material Plastic
Package Description Heat Sinked Thin Shrink Small Outline Package, Exposed Pad
Package Family Name SO
Jedec MO-153ACT
Package Outline Link to Datasheet



MANUFACTURING INFO
MSL 3
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Au
Under Plating Material Pd over Ni
Terminal Base Material Cu Alloy

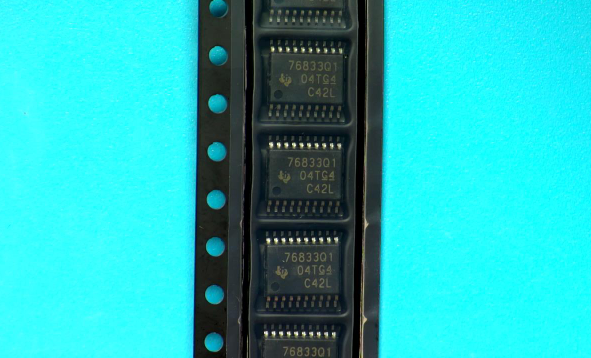

PACKAGING INFO
Packaging Suffix R
Packaging Tape and Reel
Quantity Of Packaging 2000
Reel Diameter (in) 13
Tape Pitch (mm) 8
Tape Width (mm) 16
Packaging Document Link to Datasheet

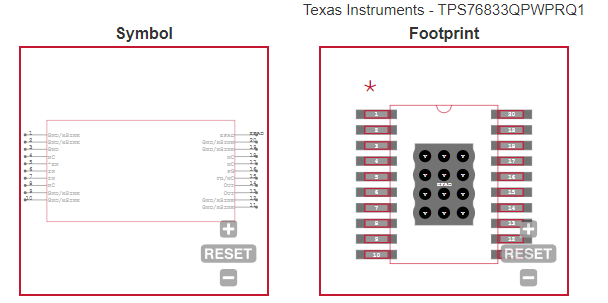

ECAD MODELS

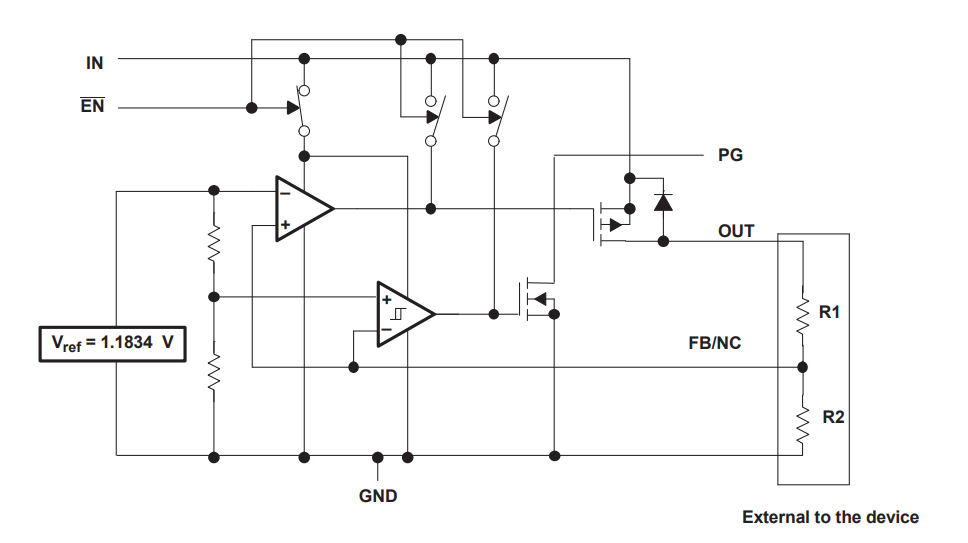

FUNCTIONAL BLOCK DIAGRAMS



APPLICATIONS
• Automotive
• Power Train
• Cluster
• ADAS
