• AEC-Q100 qualified for automotive applications:– Temperature grade 1: –40°C to 125°C, TA– Junction Temperature: –40°C to 150°C, TJ
|
• Low dropout voltage:– 300 mV at IOUT = 150 mA
|
• 7-V to 40-V wide input voltage range with up to 45-V transients
|
| • 300-mA maximum output current |
| • Ultralow quiescent current:– IQUIESCENT = 25 µA (typical) at light loads– ISLEEP < 2 µA when ENABLE = low |
| • 3.3-V and 5-V fixed output voltage |
| • Low-ESR ceramic output stability capacitor |
| • Integrated power-on reset:– Programmable delay– Open-drain reset output |
| • Integrated fault protection:– Short-circuit and overcurrent protection– Thermal shutdown |
| • Low-input-voltage tracking |
| • Thermally enhanced power packages:– 5-pin TO-263 (KTT, D2PAK)– 5-pin TO-252 (KVU, DPAK) |
| |
| CATALOG |
| TPS7A6050QKTTRQ1 COUNTRY OF ORIGIN |
TPS7A6050QKTTRQ1 PARAMETRIC INFO
|
TPS7A6050QKTTRQ1 PACKAGE INFO
|
TPS7A6050QKTTRQ1 MANUFACTURING INFO
|
TPS7A6050QKTTRQ1 PACKAGING INFO
|
TPS7A6050QKTTRQ1 EACD MODELS
|
| TPS7A6050QKTTRQ1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| China |
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.3 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
34.4°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
35mV |
| Line Regulation |
20mV |
| Maximum Quiescent Current (mA) |
0.04 |
| Maximum Dropout Voltage @ Current (V) |
0.5@250mA|0.3@150mA |
| Maximum Power Dissipation (mW) |
4140 |
| Minimum Input Voltage (V) |
3 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
5 |
| Typical Quiescent Current (mA) |
0.025 |
| Accuracy (%) |
±2 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
60 |
| Typical Output Capacitance (uF) |
10(Min) |
|
|
PACKAGE INFO
|
| Supplier Package |
DDPAK |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
6 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.7 |
| Package Length (mm) |
10.67(Max) |
| Package Width (mm) |
9.65(Max) |
| Package Height (mm) |
4.83(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
5.13(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Double Deca Watt Package |
| Package Family Name |
TO-263 |
| Jedec |
TO-263BA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|

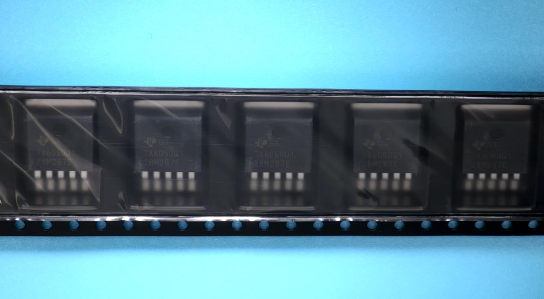

PACKAGING INFO
|
| Packaging Suffix |
KTTR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
500 |
| Packaging Document |
Link to Datasheet |
|
|

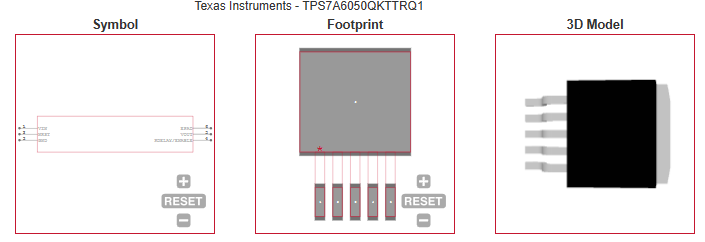

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Automotive head units
|
| • Automotive center information displays |
| • Hybrid instrument clusters |
|
| |
