• Qualified for Automotive Applications
|
• AEC-Q100 Qualified With the Following Results: – Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range– Device HBM ESD Classification Level 2– Device CDM ESD Classification Level C4B
|
• 4 to 40-V Wide VI Input Voltage Range With up to 45-V Transient
|
| • Maximum Output Current: 150 mA |
| • Low Quiescent Current (IQ): – 15 µA Typical at Light Loads– 25 µA Maximum Under Full Temperature |
| • 450-mV Typical Low Dropout Voltage at 100 mA Load Current |
| • Stable With Low ESR Ceramic Output Capacitor（2.2 to 100 µF） |
| • Fixed 2.5-V, 3.3-V, and 5-V Output Voltage Options |
| • Integrated Fault Protection:– Thermal Shutdown– Short-Circuit Protection |
| • Packages:– 4-Pin SOT-223 Package– 5-Pin SOT-23 Package |
| |
| |
| CATALOG |
| TPS7B6933QDBVRQ1 COUNTRY OF ORIGIN |
TPS7B6933QDBVRQ1 PARAMETRIC INFO
|
TPS7B6933QDBVRQ1 PACKAGE INFO
|
TPS7B6933QDBVRQ1 MANUFACTURING INFO
|
TPS7B6933QDBVRQ1 PACKAGING INFO
|
TPS7B6933QDBVRQ1 EACD MODELS
|
| TPS7B6933QDBVRQ1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
| China |
|
PARAMETRIC INFO
|
| Type |
LDO |
| Number of Outputs |
1 |
| Maximum Output Current (A) |
0.15 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Regulation Condition Change In Load |
149mA |
| Regulation Condition Change In Line |
34V |
| Output Type |
Fixed |
| Output Voltage Range (V) |
1.8 to 10 |
| Junction to Ambient |
210.4°C/W |
| Junction to Case |
126.1°C/W |
| Polarity |
Positive |
| Special Features |
Current Limit|Short Circuit Protection|Thermal Shutdown Protection |
| Load Regulation |
20mV |
| Line Regulation |
10mV |
| Maximum Quiescent Current (mA) |
0.025 |
| Maximum Dropout Voltage @ Current (V) |
0.799@50mA|0.8@100mA |
| Minimum Input Voltage (V) |
4 |
| Maximum Input Voltage (V) |
40 |
| Output Voltage (V) |
3.3 |
| Typical Quiescent Current (mA) |
0.015 |
| Typical Dropout Voltage @ Current (V) |
0.45@100mA |
| Accuracy (%) |
±3 |
| Supplier Temperature Grade |
Automotive |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Typical PSRR (dB) |
60 |
| Typical Output Capacitance (uF) |
2.2 to 100 |
| Output Capacitor Type |
Ceramic |
|
|
PACKAGE INFO
|
| Supplier Package |
SOT-23 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
5 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.95 |
| Package Length (mm) |
3.05(Max) |
| Package Width (mm) |
1.75(Max) |
| Package Height (mm) |
1.1 |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.05(Max) |
| Package Overall Width (mm) |
3(Max) |
| Package Overall Height (mm) |
1.45(Max) |
| Seated Plane Height (mm) |
1.45(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Jedec |
MO-178AA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Reel Diameter (in) |
7 |
| Tape Pitch (mm) |
4 |
| Tape Width (mm) |
8 |
| Packaging Document |
Link to Datasheet |
|
|

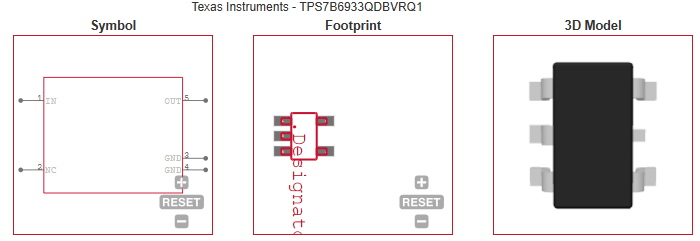

ECAD MODELS
|
|
|
| APPLICATIONS |
| •
Automotive
|
| • Infotainment Systems With Sleep Mode |
| • Always-On Battery Applications– Door Modules– Remote Keyless-Entry Systems– Immobilizers |
|
| |
