| • 3.0-mm x 2.8-mm x 1.5-mm MicroSiP™ Package |
| • 3.0-V to 17-V Input Range |
| • 1-A Continuous Output Current |
| • DCS-Control™ Topology |
| • Power Save Mode for Light Load Efficiency |
| • 20-µA Operating Quiescent Current |
| • 0.9-V to 6-V Adjustable Output Voltage |
| • 100% Duty Cycle for Lowest Dropout |
| • Power Good Output |
| • Programmable Soft Startup with Tracking |
| • Thermal Shutdown Protection |
| • Pin to Pin compatible with TPS82130 and
TPS82140 |
| • –40°C to 125°C Operating Temperature Range |
| • Create a Custom Design using the TPS82150 with
the WEBENCH® Power Designer |
|
| CATALOG |
| TPS82150SILT COUNTRY OF ORIGIN |
| TPS82150SILT PARAMETRIC INFO |
| TPS82150SILT PACKAGE INFO |
| TPS82150SILT MANUFACTURING INFO |
| TPS82150SILT PACKAGING INFO |
| TPS82150SILT ECAD MODELS |
| TPS82150SILT FUNCTIONAL BLOCK DIAGRAM |
| TPS82150SILT APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
| PARAMETRIC INFO |
| Type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
0.9 to 6 |
| Maximum Output Current (A) |
1 |
| Minimum Operating Temperature (°C) |
-40 |
| Tradename |
MicroSiP™ |
| Maximum Operating Temperature (°C) |
125 |
| Switching Regulator |
Yes |
| Minimum Input Voltage (V) |
3 |
| Maximum Input Voltage (V) |
17 |
| Output Type |
Adjustable |
| Load Regulation |
0.12%/A(Typ) |
| Line Regulation |
0.002%/V(Typ) |
| Switching Frequency (kHz) |
2000(Typ) |
| Typical Standby Current (mA) |
0.0015 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
125 |
| On/Off Logic |
Positive |
|
|
| PACKAGE INFO |
| Supplier Package |
uSIP SMD EP |
| Pin Count |
8 |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
2.9(Max) |
| Package Height (mm) |
1.53(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.53(Max) |
| Mounting |
Surface Mount |
| Package Family Name |
SIP |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
N/A |
|
|

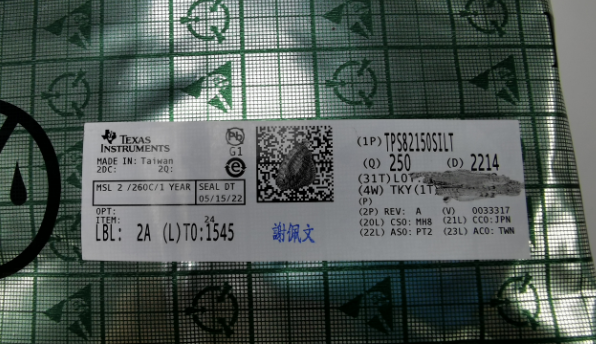

| PACKAGING INFO |
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Reel Diameter (in) |
7 |
| Reel Width (mm) |
13.2 |
| Tape Pitch (mm) |
8 |
| Tape Width (mm) |
12 |
| Component Orientation |
Q1 |
| Packaging Document |
Link to Datasheet |
|
|

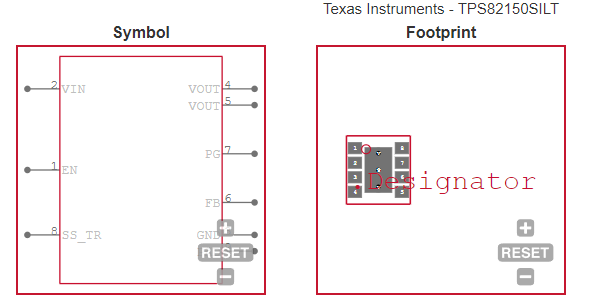

| ECAD MODELS |
 |
|

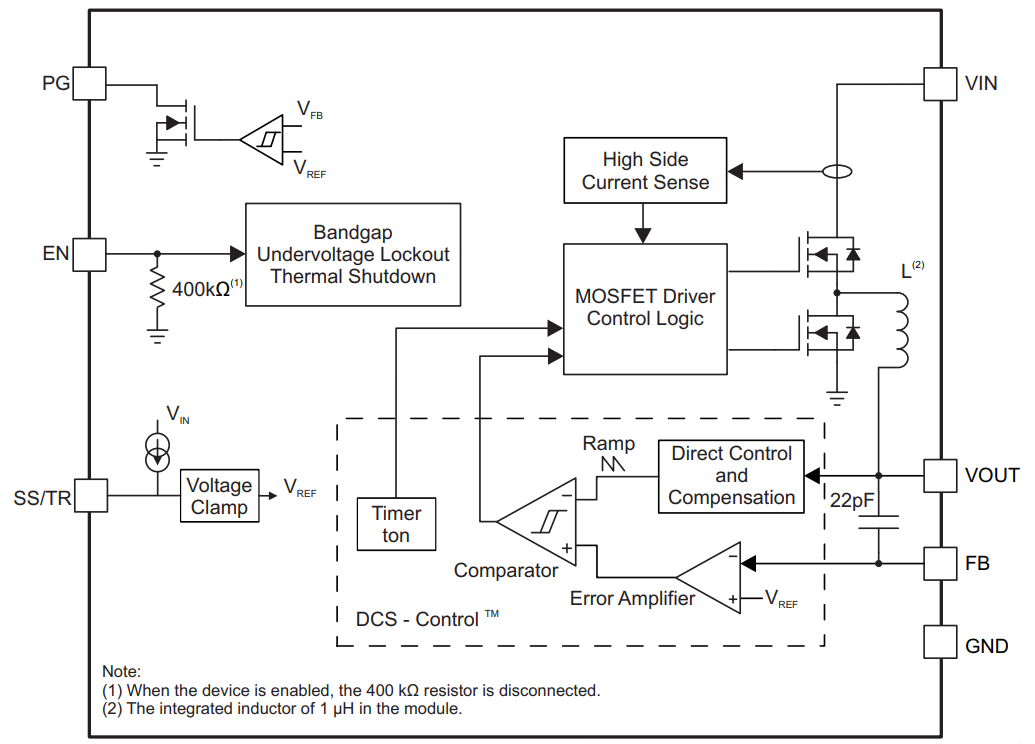

| FUNCTIONAL BLOCK DIAGRAM |
 |
|
| APPLICATIONS |
| • Industrial Applications |
| • Telecom and Networking Applications |
| • Solid State Drives
|
| • Inverting Power Supply |
| |
| |
