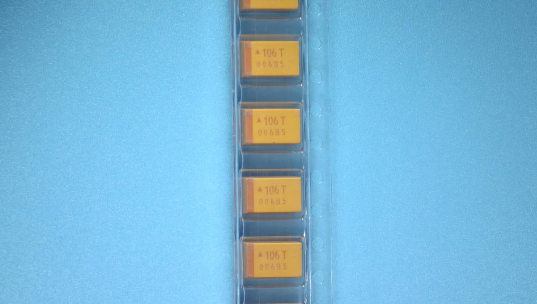

| • Low ESR Series of Robust Mn02
Solid Electrolyte Capacitors |
| • 100% Surge Current Tested |
| • CV Range: 0.15-1500μF / 2.5-50V |
| • 14 Case Sizes Available |
| • Power Supply Applications |
|
| CATALOG |
| TPSE106K050R0250 COUNTRY OF ORIGIN |
| TPSE106K050R0250 PARAMETRIC INFO |
| TPSE106K050R0250 PACKAGE INFO |
| TPSE106K050R0250 MANUFACTURING INFO |
| TPSE106K050R0250 PACKAGING INFO |
| TPSE106K050R0250 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Thailand |
| France |
| Malaysia |
| El Salvador |
| Czechia |
| Israel |
| United States of America |
| Japan |
| Mexico |
|
| PARAMETRIC INFO |
| Capacitance Value |
10uF |
| Voltage |
50VDC |
| Tolerance |
10% |
| Ripple Current (mA) |
812 |
| Case Code |
E |
| Leakage Current (uA) |
5 |
| Equivalent Series Resistance (Ohm) |
0.25 |
| Case Style |
Molded |
| Fail Safe with Built-in Fuse |
No |
| High Shock and Vibrating |
Yes |
| Temperature Range @ Derated Voltage (°C) |
85 to 125 |
| Polarity |
Polar |
| Construction |
Flat |
| Operating Temperature (°C) |
-55 to 125 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Operating Temperature (°C) |
-55 |
| Equivalent Series Resistance Type |
Low |
| DC Rated Voltage (VDC) |
50 |
| Negative Capacitance Tolerance (%) |
-10 |
| Positive Capacitance Tolerance (%) |
10 |
| Surge Test Option |
No Surge |
| Minimum Storage Temperature (°C) |
-10 |
| Maximum Storage Temperature (°C) |
50 |
| Maximum Dissipation Factor (%) |
6 |
| Type |
Solid |
| Package Region |
World Wide |
| Fixed/Variable |
Fixed |
|
| |
| PACKAGE INFO |
| Package/Case |
7343-43 |
| Mounting |
Surface Mount |
| Termination Style |
Inward L |
| Terminal Pitch (mm) |
N/R |
| Product Length (mm) |
7.3 |
| Product Depth (mm) |
4.3 |
| Product Height (mm) |
4.1 |
| Product Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
N/R |
| Product Weight (g) |
0.512 |
| Number of Terminals |
2 |
| Size (mm) |
7.3 X 4.3 X 4.1 |
|
| |
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu|Alloy 42 |
| Number of Wave Cycles |
3 |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
|
| |
| APPLICATIONS |
| • General Medium Power DC/DC Convertors |
|
