• Integrated Inductor Power Solution
|
• 7.5 mm × 7.5 mm × 5.3 mm QFM Package– All Pins Accessible from Package Perimeter
|
• Input Voltage Range: 4.5 V to 17 V
|
| • Wide-Output Voltage Range: 0.6 V to 10 V
|
| • Efficiencies up to 96% |
| • Adjustable Fixed Switching Frequency(200 kHz to 1.6 MHz) |
| • Allows Synchronization to an External Clock |
| • Ultra-Fast Load Step Response (TurboTrans™) |
| • Power Good Output |
| • Meets EN55011 Class B Radiated EMI Limits |
| • Operating Ambient Range: –40°C to +105°C |
| • Operating IC Junction Range: –40°C to +150°C |
| • Create a Custom Design Using the TPSM84424 With the WEBENCH® Power Designer |
| |
| CATALOG |
| TPSM84424MOLR COUNTRY OF ORIGIN |
TPSM84424MOLR PARAMETRIC INFO
|
TPSM84424MOLR PACKAGE INFO
|
TPSM84424MOLR MANUFACTURING INFO
|
TPSM84424MOLR PACKAGING INFO
|
TPSM84424MOLR EACD MODELS
|
| TPSM84424MOLR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Mexico |
| Taiwan (Province of China) |
| |
PARAMETRIC INFO
|
| Isolation |
Non-Isolated |
| type |
Step Down |
| Number of Outputs |
1 |
| Output Voltage (V) |
0.6 to 10 |
| Maximum Output Current (A) |
4 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Switching Regulator |
yes |
| Minimum Input Voltage (V) |
4.5 |
| Maximum Input Voltage (V) |
17 |
| Output Type |
Adjustable |
| Efficiency (%) |
94(Typ) |
| Load Regulation |
0.8mV(Typ) |
| Line Regulation |
0.1mV(Typ) |
| Switching Frequency (kHz) |
1600 |
| Typical Standby Current (mA) |
0.003 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
150 |
| On/Off Logic |
Positive |
|
|
PACKAGE INFO
|
| Supplier packaging |
QFM |
| Number of pins |
twenty four |
| PCB |
twenty four |
| ears |
N/R |
| Package length (mm) |
7.6(Max) |
| Package width (mm) |
7.6(Max) |
| Package height (mm) |
5.4(Max) |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Lead Finish(Plating) |
AHr |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |
Tape and reel packaging |
| Packing quantity |
500 |
| packaging type file |
Link to datasheet |
|
|

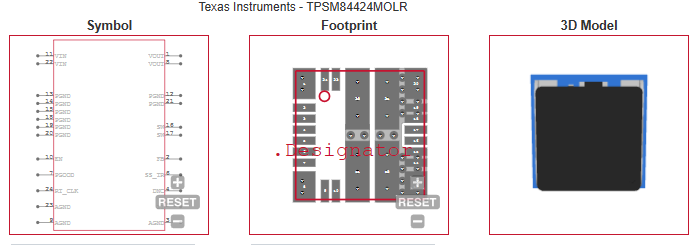

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Telecom and Wireless Infrastructure |
| • Industrial Automated Test Equipment |
| • Enterprise Switching and Storage Applications |
| • High Density Distributed Power Systems |
| |
