• 3 types of terminal shapes:
PC board terminal ( standard/self-clinching terminal )
Surface-mount terminal
|
• Confort to FCC Part68:
Surge withstand voltage 1,500 V ( between open contacts )
|
• M.B.B. contact available
|
• Internal Current and Thermal Limiting
|
• Surface-mount terminal conform to JIS
C0806 standard
|
|
| CATALOG |
| TQ2-12V COUNTRY OF ORIGIN |
TQ2-12V PARAMETRIC INFO
|
TQ2-12V PACKAGE INFO
|
TQ2-12V MANUFACTURING INFO
|
TQ2-12V PACKAGING INFO
|

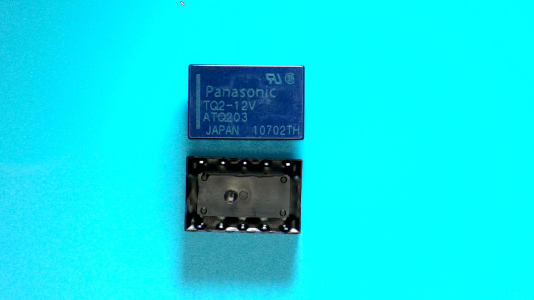

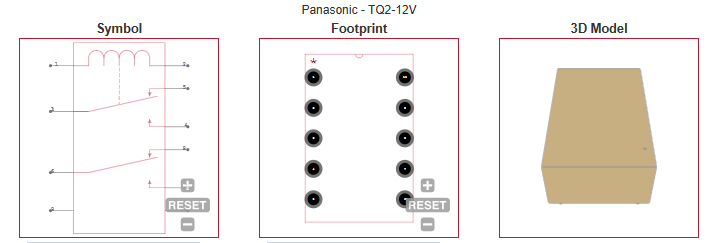

TQ2-12V.ECAD MODELS
|
TQ2-12V.APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| China |
Japan
|
|
PARAMETRIC INFO
|
| DC Coil Voltage (V) |
12 |
| Coil Current (mA) |
11.7 |
| Contact Arrangement |
DPDT |
| Contact Form |
2 Form C |
| Contact Material |
Silver/Gold Clad |
| Maximum AC Switching Voltage (V) |
125 |
| Maximum DC Switching Voltage (V) |
110 |
| Maximum Switching Current (A) |
1 |
| Maximum Switching Power |
30W|62.5VA |
| Coil Resistance (Ohm) |
1.028K |
| Maximum Pick-Up Voltage |
9VDC |
| Minimum Dropout Voltage |
1.2VDC |
| Relay Construction |
Non-Latching |
| Operate Time (ms) |
3 |
| Release Time (ms) |
3 |
| Seal |
Sealed |
| Maximum Contact Resistance (mOhm) |
50 |
| Insulation Resistance (MOhm) |
1000 |
| IP Rating |
IP67 |
| Electrical Life (Operations) |
100000 |
| Mechanical Life (Operations) |
100000000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
70 |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
PC Pin |
| Number of Terminals |
10 |
| Package Type |
DIP |
| Product Length (mm) |
14 |
| Product Depth (mm) |
9 |
| Product Height (mm) |
5 |
| Product Weight (g) |
1.5 |
| Terminal Pitch (mm) |
2.54 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
6 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
50 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• Telecommunications and measurement
equipment
|
| • Telephone related equipment
|
• OA equipment
|
• Industrial machines
|
|
|
| |
