• 3 types of terminal shapes:PC board terminal ( standard/self-clinching terminal )Surface-mount terminal
|
• Confort to FCC Part68: Surge withstand voltage 1,500 V ( between open contacts )
|
• M.B.B. contact available
|

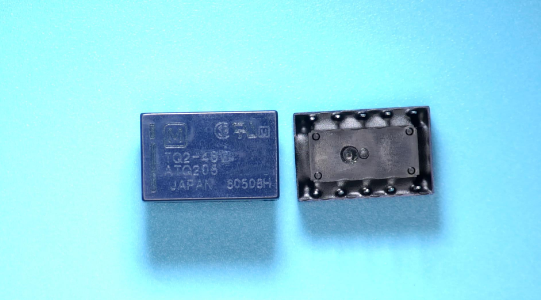

| • Surface-mount terminal conform to JIS C0806 standard |
| |
| CATALOG |
| TQ2-48V COUNTRY OF ORIGIN |
TQ2-48V PARAMETRIC INFO
|
TQ2-48V PACKAGE INFO
|
TQ2-48V MANUFACTURING INFO
|
TQ2-48V PACKAGING INFO
|
TQ2-48V EACD MODELS
|
| TQ2-48V APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Japan |
|
PARAMETRIC INFO
|
| DC Coil Voltage (V) |
48 |
| Coil Current (mA) |
6.3 |
| Contact Arrangement |
DPDT |
| Contact Form |
2 Form C |
| Contact Material |
Silver/Gold Clad |
| Maximum AC Switching Voltage (V) |
125 |
| Maximum DC Switching Voltage (V) |
110 |
| Maximum Switching Current (A) |
1 |
| Maximum Switching Power |
30W|62.5VA |
| Coil Resistance (Ohm) |
7.68K |
| Maximum Pick-Up Voltage |
36VDC |
| Minimum Dropout Voltage |
4.8VDC |
| Relay Construction |
Non-Latching |
| Operate Time (ms) |
3 |
| Release Time (ms) |
3 |
| Seal |
Sealed |
| Maximum Contact Resistance (mOhm) |
50 |
| Insulation Resistance (MOhm) |
1000 |
| IP Rating |
IP67 |
| Electrical Life (Operations) |
100000 |
| Mechanical Life (Operations) |
100000000 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
70 |
|
|
PACKAGE INFO
|
| Mounting |
Through Hole |
| Termination Style |
PC Pin |
| Number of Terminals |
10 |
| Package Type |
DIP |
| Product Length (mm) |
14 |
| Product Depth (mm) |
9 |
| Product Height (mm) |
5 |
| Product Weight (g) |
1.5 |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
6 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
SnAgCu |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Packaging Document |
Link to Datasheet |
|
|

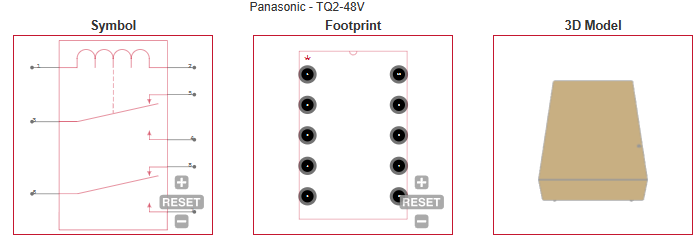

ECAD MODELS
|
|
|
| APPLICATIONS |
| • Telecommunications and measurement equipment |
| • Telephone related equipment |
| • OA equipment |
| • Industrial machines |
| |
