• AEQ-Q100 qualified for automotive applications– Device temperature grade 3: -40ºC to 85ºC TA
|
• Two-port USB 2.0 hub
|
• USB 2.0 hub features:– Multi-transaction translator (MTT) hub: two transaction translators– Four asynchronous endpoint buffers pertransaction translator
|
| • Type C compatible
|
| • Supports battery charging– CDP mode (upstream port connected)– DCP mode (upstream port unconnected)– DCP mode complies with chinesetelecommunications industry standard YD/T1591-2009– D+/D– divider mode |
| • Per port or ganged power switching and overcurrent notification inputs |
| • OTP ROM, serial EEPROM, or I2C/SMBus slave interface for custom configurations:– VID and PID– Port customizations– Manufacturer and product strings (not by OTP ROM)– Serial number (not by OTP ROM) |
| • Application feature selection using terminal selection or EEPROM/ or I2C/SMBus slave interface |
| • Provides 128-bit universally unique identifier(UUID) |
| • Supports on-board and in-system OTP/EEPROM programming through the USB 2.0 upstream port |
| • Single clock input, 24-MHz crystal or oscillator |
| • No special driver requirements; works seamlessly on any operating system with USB stack support |
| • 48-Pin HTQFP package (PHP) |
|
| CATALOG |
| TUSB4020BIPHPRQ1 COUNTRY OF ORIGIN |
TUSB4020BIPHPRQ1 PARAMETRIC INFO
|
TUSB4020BIPHPRQ1 PACKAGE INFO
|
TUSB4020BIPHPRQ1 MANUFACTURING INFO
|
TUSB4020BIPHPRQ1 PACKAGING INFO
|
TUSB4020BIPHPRQ1 EACD MODELS
|
| TUSB4020BIPHPRQ1 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Philippines |
|
PARAMETRIC INFO
|
| Maximum Operating Temperature (°C) |
85 |
| Maximum Operating Supply Voltage (V) |
1.26|3.6 |
| Minimum Operating Supply Voltage (V) |
0.99|3 |
| Typical Operating Supply Voltage (V) |
3.3|5 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-65 |
| Protocols Supported |
USB 2.0 |
| Interface Type |
I2C/GPIO |
| USB Speed Type |
Full Speed|High Speed |
| type |
2-Port USB Hub Controller |
| USB Transceiver |
no |
|
|
PACKAGE INFO
|
| Supplier packaging |
HTQFP EP |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
48 |
| Pin shape |
Gull-wing |
| PCB |
48 |
| ears |
N/R |
| Pin spacing (mm) |
0.5 |
| Package length (mm) |
7.2(Max) |
| Package width (mm) |
7.2(Max) |
| Package height (mm) |
1.05(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
9.2(Max) |
| Package Overall Width (mm) |
9.2(Max) |
| Package Overall Height (mm) |
1.2(Max) |
| Mounting surface height (mm) |
1.2(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Heat Sinked Thin Quad Flat Package, Exposed Pad |
| Package series name |
QFP |
| JEDEC |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Au |
| Plating materials |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Package |

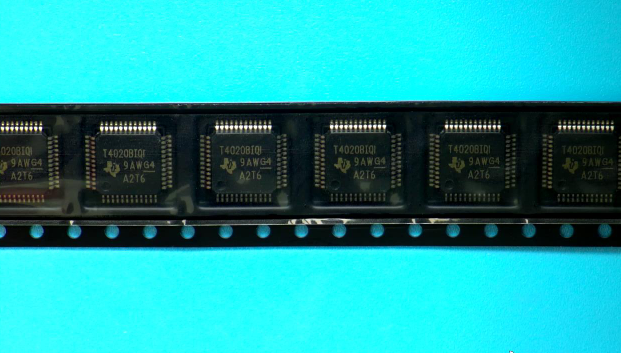

Tape and reel packaging |
| Packing quantity |
1000 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
16.4 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
16 |
| Component Orientation |
Q2 |
| packaging type file |
Link to datasheet |
|
|

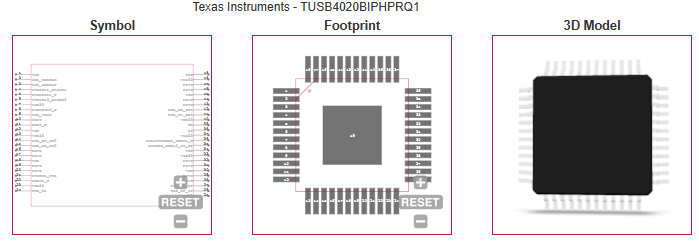

ECAD MODELS
|
|
|
APPLICATIONS
|
• Automotive
|
| • Computer systems |
| • Docking stations |
| • Monitors |
| • Set-top boxes |
| |
| |
