U.FL-R-SMT-1(80) COUNTRY OF ORIGIN
|
U.FL-R-SMT-1(80) PARAMETRIC INFO
|
U.FL-R-SMT-1(80) PACKAGE INFO
|
U.FL-R-SMT-1(80) MANUFACTURING INFO
|

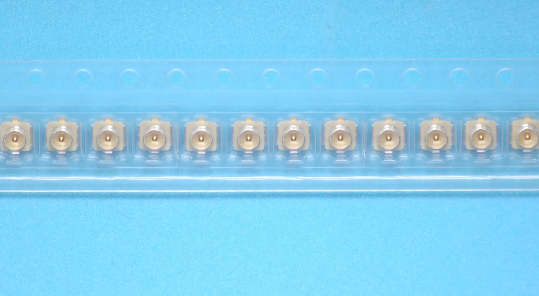

U.FL-R-SMT-1(80) PACKAGING INFO
|
U.FL-R-SMT-1(80) ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
China
|
Japan
|
|
PARAMETRIC INFO
|
| Type |
U.FL |
| Gender |
RCP |
| Operating Frequency (Hz) |
0 to 8G |
| Impedance (Ohm) |
50 |
| Termination Method |
Solder |
| Contact Plating |
Gold Over Nickel |
| Contact Gender |
M |
| Contact Material |
Brass |
| Terminate To |
PCB |
| Body Plating |
Silver |
| Body Material |
Phosphor Bronze |
| Insulator Material |
Liquid Crystal Polymer |
| Insulation Resistance (MOhm) |
500 |
| Polarity |
Reverse |
| Operating Temperature (°C) |
-40 to 105 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
105 |
| Mating Cycle (Cycles) |
30 |
| Minimum Storage Temperature (°C) |
-30 |
| Maximum Storage Temperature (°C) |
70 |
|
|
PACKAGE INFO
|
| Body Orientation |
Straight |
| Mounting |
Surface Mount |
| Product Length (mm) |
3 |
| Product Depth (mm) |
3.1 |
| Product Height (mm) |
1.25 |
| Product Diameter (mm) |
N/R |
| Product Weight (g) |
0.0157 |
|
|
MANUFACTURING INFO
|
| MSL |
N/A |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
10 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
10000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
