US1JFA onsemi / Fairchild DIODE GEN PURP 600V 1A SOD123FA

label:
2025/07/30 11
US1JFA onsemi / Fairchild DIODE GEN PURP 600V 1A SOD123FA


• Glass Passivated Chip Junction
• Low Power Loss, High Efficiency
• Fast Switching Reverse Recovery Time: 50~75 ns Maximum
• High Surge Capacity
• UL Flammability 94V−0 Classification
• MSL 1 per J−STD−020
• NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
• These Devices are Pb−Free, Halogen Free and are RoHS Compliant


CATALOG
US1JFA COUNTRY OF ORIGIN
US1JFA PARAMETRIC INFO
US1JFA PACKAGE INFO
US1JFA PACKAGING INFO


COUNTRY OF ORIGIN
China
Taiwan (Province of China)


PARAMETRIC INFO
Type Switching Diode
Configuration Single
Maximum DC Reverse Voltage (V) 600
Peak Reverse Repetitive Voltage (V) 600
Maximum Continuous Forward Current (A) 1
Speed Ultra Fast Recovery Rectifier
Typical Junction Capacitance (pF) 15
Maximum Junction Ambient Thermal Resistance (°C/W) 153
Maximum Forward Voltage (V) 1.7
Peak Non-Repetitive Forward Surge Current (A) 30
Maximum RMS Reverse Voltage (V) 420
Peak Reverse Current (uA) 5
Peak Reverse Recovery Time (ns) 75
Operating Junction Temperature (°C) -55 to 150
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150


PACKAGE INFO
Supplier Package SOD-123FL
Basic Package Type Lead-Frame SMT
Pin Count 2
Lead Shape Flat
PCB 2
Tab N/R
Pin Pitch (mm) N/R
Package Length (mm) 2.8
Package Width (mm) 1.8
Package Height (mm) N/A
Package Diameter (mm) N/R
Package Overall Length (mm) 3.6
Package Overall Width (mm) 1.8
Package Overall Height (mm) 1.33
Seated Plane Height (mm) 1.33
Mounting Surface Mount
Terminal Width (mm) 1
Package Weight (g) N/A
Package Material Plastic
Package Description Small Outline Diode Package
Package Family Name SOD
Jedec N/A
Package Outline Link to Datasheet


PACKAGING INFO

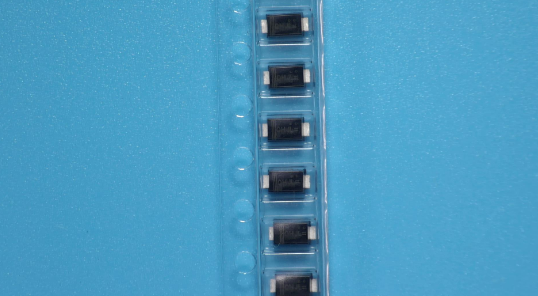

Packaging Tape and Reel
Quantity Of Packaging 3000
