COUNTRY OF ORIGIN
|
China
|
Thailand
|
|
PARAMETRIC INFO
|
| Maximum Operating Temperature (°C) |
85 |
| Maximum Storage Temperature (°C) |
150 |
| Maximum Operating Supply Voltage (V) |
3.6 |
| Minimum Operating Supply Voltage (V) |
3 |
| Typical Operating Supply Voltage (V) |
3.3 |
| Minimum Operating Temperature (°C) |
-40 |
| Minimum Storage Temperature (°C) |
-55 |
| Supplier Temperature Grade |
Industrial |
| Protocols Supported |
USB 2.0/USB 3.2 |
| Maximum Data Rate (Mbps) |
5000/480/12/1.5 |
| Interface Type |
SPI/SMBUS |
| Maximum Operating Frequency (MHz) |
60 |
| USB Speed Type |
Low Speed|Full Speed|High Speed|Super Speed |
| Type |
USB Controller Hub |
| USB Transceiver |
Yes |
|
|

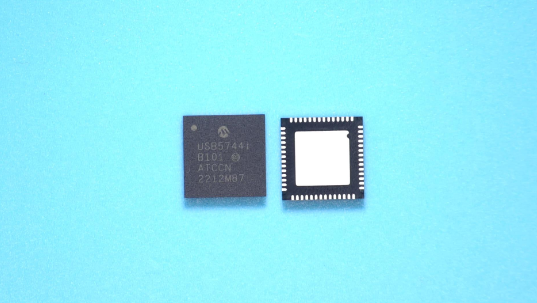

PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
56 |
| Lead Shape |
No Lead |
| PCB |
56 |
| Tab |
N/R |
| Package Length (mm) |
7 |
| Package Width (mm) |
7 |
| Package Height (mm) |
0.83 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 to 40 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020C |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
|
|
PACKAGING INFO
|
| Packaging |
Tray |
| Quantity Of Packaging |
260 |
|
|

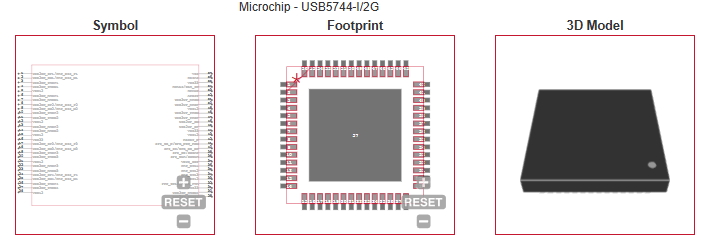

ECAD MODELS
|
|
|
APPLICATIONS
|
• Standalone USB Hubs
|
• Laptop Docks
|
• PC Motherboards
|
• PC Monitor Docks
|
• Multi-function USB 3.2 Gen 1 Peripherals
|
| |
