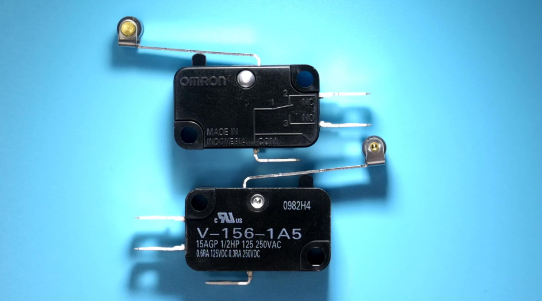

V-156-1A5 Omron Electronics SWITCH SNAP ACTION SPDT 15A 250V

label:
2024/12/5 131
V-156-1A5 Omron Electronics SWITCH SNAP ACTION SPDT 15A 250V


CATALOG
V-156-1A5 PARAMETRIC INFO
V-156-1A5 PACKAGE INFO
V-156-1A5 MANUFACTURING INFO
V-156-1A5 ECAD MODELS


PARAMETRIC INFO
Pole Throw Configuration SPDT
Switch Configuration N.O./N.C.
Maximum Current Rating (A) 15@250VAC
Maximum AC Voltage Rating (V) 250
Maximum DC Voltage Rating (V) 250
Maximum Power Rating (VA) 372.85@(CSA/UL)
Electrical Life (Cycles) 100000
Mechanical Life (Cycles) 50000000
Actuator Style Hinge Roller Lever
Operating Force (N) 1.23
Release Force (N) 0.14
Contact Material Silver Alloy
Actuator Material Polyacetal Resin/Stainless Steel/N/A
IP Rating IP40
Dielectric Strength 1000VAC
Minimum Insulation Resistance (MOhm) 100
Maximum Movement Differential (mm) 1.5
Minimum Over-Travel (mm) 1.6
Maximum Pre-Travel (mm) 4
Maximum Operating Temperature (°C) 105
Minimum Operating Temperature (°C) -25
Body Length (mm) 27.8
Body Depth (mm) 10.3
Body Height (mm) 15.9
Operating Temperature (°C) -25 to 105


PACKAGE INFO
Termination Style Solder
Mounting Screw Mount
Body Orientation Straight
Product Length (mm) 49.2
Product Depth (mm) 10.3
Product Height (mm) 30.4
Product Weight (g) N/A


MANUFACTURING INFO
MSL N/R
Maximum Reflow Temperature (°C) N/R
Reflow Solder Time (Sec) N/R
Maximum Wave Temperature (°C) N/A
Wave Solder Time (Sec) N/A
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) N/A
Under Plating Material N/A
Terminal Base Material N/A


ECAD MODELS


Продукт RFQ
