• Very low profile - typical height of 1.1 mm
|
• Ideal for automated placement
|
• Trench MOS Schottky technology
|
• Low forward voltage drop, low power losses
|
• High efficiency operation
|
• Meets MSL level 1, per J-STD-020,LF maximum peak of 260 °C
|
• AEC-Q101 qualified available- Automotive ordering code; base P/NHM3
|
|
| CATALOG |
V10P10HM3_A/H COUNTRY OF ORIGIN
|
V10P10HM3_A/H PARAMETRIC INFO
|
V10P10HM3_A/H PACKAGE INFO
|
V10P10HM3_A/H PACKAGING INFO
|

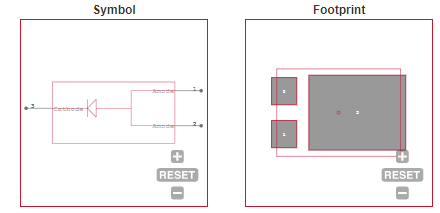

V10P10HM3_A/H ECAD MODELS
|
V10P10HM3_A/H APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Schottky Diode |
| Configuration |
Single Dual Anode |
| Peak Reverse Repetitive Voltage (V) |
100 |
| Maximum DC Reverse Voltage (V) |
100 |
| Maximum Continuous Forward Current (A) |
10 |
| Maximum Junction Ambient Thermal Resistance |
60°C/W(Typ) |
| Peak Forward Voltage (V) |
0.68 |
| Peak Non-Repetitive Surge Current (A) |
180 |
| Peak Reverse Current (uA) |
150 |
| Operating Junction Temperature (°C) |
-40 to 150 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
| Tradename |
eSMP® |
|
|
PACKAGE INFO
|
| Supplier Package |
SMPC |
| Pin Count |
3 |
| PCB |
2 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.13 |
| Package Length (mm) |
4.35(Max) |
| Package Width (mm) |
6.15(Max) |
| Package Height (mm) |
1.2(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
4.75(Max) |
| Package Overall Width (mm) |
6.65(Max) |
| Package Overall Height (mm) |
1.2(Max) |
| Seated Plane Height (mm) |
1.2(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Outline |
Link to Datasheet |
|
|

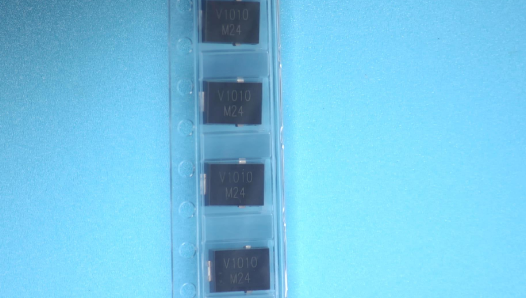

PACKAGING INFO
|
| Packaging Suffix |
_A/ |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
For use in low voltage high frequency inverters,
freewheeling, DC/DC converters, and polarity protection
applications.
|
| |
