VHR-3N COUNTRY OF ORIGIN
|
VHR-3N PARAMETRIC INFO
|
VHR-3N PACKAGE INFO
|
VHR-3N MANUFACTURING INFO
|
VHR-3N PACKAGING INFO
|
|
COUNTRY OF ORIGIN
|
Japan
|
Malaysia
|
|
PARAMETRIC INFO
|
| Type |
Housing |
| Gender |
RCP |
| Number of Contacts |
3 |
| Termination Method |
Crimp |
| Maximum Current Rating (A) |
10 |
| Maximum Voltage Rating |
250VDC|250VAC |
| Housing Material |
Polyamide 6 |
| Housing Color |
White |
| Number of Rows |
1 |
| Wire Size (AWG) |
16-22 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Keyed |
Yes |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
3.96 |
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
11.82 |
| Product Depth (mm) |
10.5 |
| Product Height (mm) |
13.3 |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/R |
| Under Plating Material |
N/R |
| Terminal Base Material |
N/R |
| Shelf Life Period |
N/R |
| Under Plating Porosity Free |
N/R |
| Number of Wave Cycles |
N/R |
|
|

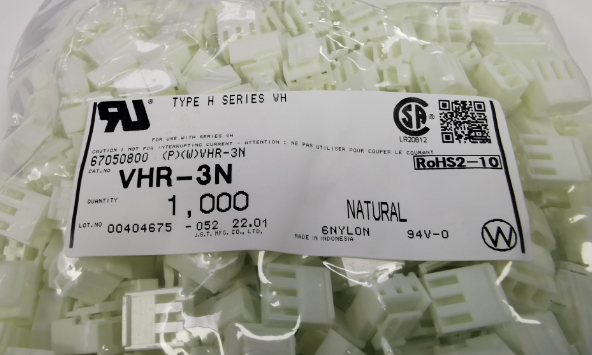

PACKAGING INFO
|
| Packaging |
Bag |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
|
