• Fully integrated miniature module
– 940 nm laser VCSEL
– VCSEL driver
– Ranging sensor with advanced embedded
micro controller
– 4.4 x 2.4 x 1.0 mm
|
• Fast, accurate distance ranging
– Measures absolute range up to 2 m
– Reported range is independent of the
target reflectance
– Advanced embedded optical crosstalk
compensation to simplify cover glass
selection
|
• Eye safe
– Class 1 laser device compliant with latest
standard IEC 60825-1:2014 - 3rd edition
|
• Easy integration
– Single reflowable component
– No additional optics
– Single power supply
– I2C interface for device control and data
transfer
– Xshutdown (reset) and interrupt GPIO
– Programmable I2C address
|
|
| CATALOG |
VL53L0CXV0DH/1 COUNTRY OF ORIGIN
|
VL53L0CXV0DH/1 PARAMETRIC INFO
|
VL53L0CXV0DH/1 PACKAGE INFO
|
VL53L0CXV0DH/1 MANUFACTURING INFO
|
VL53L0CXV0DH/1 PACKAGING INFO
|
VL53L0CXV0DH/1 ECAD MODELS
|
VL53L0CXV0DH/1 APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
China
|
|
PARAMETRIC INFO
|
| Type |
Environmental |
| Module/IC Classification |
IC |
| Sensing Distance (mm) |
2 |
| Typical Operating Supply Voltage (V) |
2.8 |
| Maximum Operating Supply Voltage (V) |
3.5 |
| DC Supply Voltage (V) |
2.6 to 3.5 |
| Minimum Operating Temperature (°C) |
-20 |
| Maximum Operating Temperature (°C) |
70 |
| Sensing Distance Range (mm) |
2 to 7 |
| Response Frequency (Hz) |
400000 |
| Body Style |
Rectangular |
| Minimum Operating Supply Voltage (V) |
2.6 |
| DC Supply Voltage Range (V) |
<9 |
| Maximum Leakage Current (mA) |
0.01 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Supplier Package |
LGA EP |
| Pin Count |
12 |
| PCB |
12 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
4.4 |
| Package Width (mm) |
2.4 |
| Package Height (mm) |
1 |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Family Name |
LGA |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|

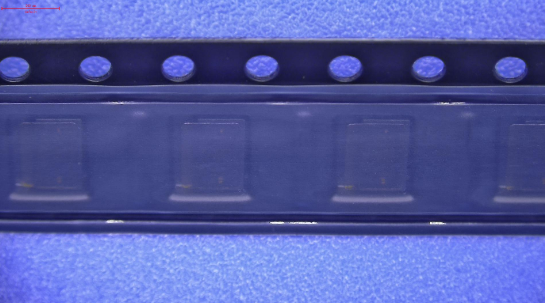

PACKAGING INFO
|
|
|
|

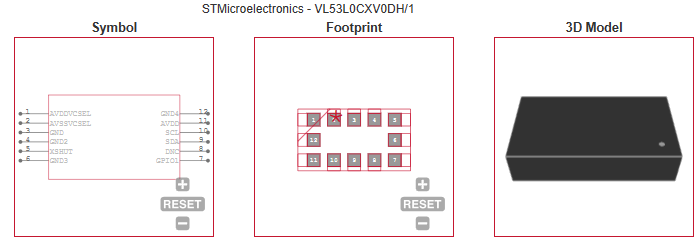

ECAD MODELS
|
|
|
APPLICATIONS
|
• Access control (system activation and
presence detection)
|
| • Robotics (collision avoidance, wall tracking,
cliff detection) |
• Home appliance and Home automation
|
• Inventory management and liquid level
monitoring
|
|
| |
