• High efficient InGaN technology
|
• Smallest SMD package 0603 with exceptional brightness 1.6 mm x 0.8 mm x 0.6 mm (L x W x H)
|
• High reliability lead frame based
|
• Temperature range -40 °C to +100 °C
|
• Chromaticity coordinate categorized according to CIE1931 per packing unit
|
|
| CATALOG |
VLMW11R2S2-5K8L-08 LIFECYCLE
|
VLMW11R2S2-5K8L-08 PARAMETRIC INFO
|
VLMW11R2S2-5K8L-08 PACKAGE INFO
|
VLMW11R2S2-5K8L-08 MANUFACTURING INFO
|
VLMW11R2S2-5K8L-08 PACKAGING INFO
|
VLMW11R2S2-5K8L-08 APPLICATIONS
|
|
LIFECYCLE
|
Obsolete
May 01,2021
|
|
PARAMETRIC INFO
|
| Type |
Uni-Color |
| Color |
White |
| Category |
Chip LED |
| Mounting Orientation |
Top Mount |
| Lens Shape Type |
Rectangular |
| LED Material |
InGaN |
| Lead Standoff |
No |
| High Brightness |
No |
| Intensity |
280mcd(Max) |
| Supplier Color |
White |
| Test Current (mA) |
10 |
| Number of LEDs |
1 |
| Viewing Angle (°) |
160 |
| Typical Color Temperature |
5500K |
| High Power |
No |
| Maximum Forward Voltage (V) |
4 |
| Maximum Forward Current (mA) |
20 |
| Reverse Voltage (V) |
5 |
| Maximum Power Dissipation (mW) |
80 |
| Minimum Forward Voltage (V) |
2.9 |
| Internal Protection |
No |
| Maximum Junction Temperature (°C) |
110 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
100 |
| Maximum Forward Voltage Range (V) |
3.3 to 5 |
|
|
PACKAGE INFO
|
| Supplier Package |
Case 0603(1608Metric) |
| Pin Count |
2 |
| PCB |
2 |
| Tab |
N/R |
| Package Length (mm) |
1.6 |
| Package Width (mm) |
0.8 |
| Package Height (mm) |
0.6 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
0.6 |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Family Name |
SMD |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
2 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/A |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|

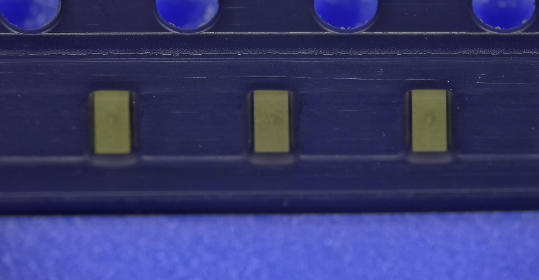

PACKAGING INFO
|
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Packaging Document |
Link to Datasheet |
|
|
APPLICATIONS
|
• Automotive: backlighting in dashboards, switches, and
keypads
|
|
|
