VN5T006ASPTR-E STMicroelectronics IC DVR SWITCH HI SIDE POWERSO10

label:

2024/01/8 291

• AEC-Q100 qualified

• General
– Very low standby current
– 3 V CMOS compatible input
– Optimized electromagnetic emission
– Very low electromagnetic susceptibility
– Compliance with 2002/95/EC European directive
– Fault reset standby pin (FR_Stby)

• Diagnostic functions
– Proportional load current sense
– Current sense precision for wide range currents
– Off-state open-load detection
– Output short to VCC detection
– Overload and short to ground latch-off
– Thermal shutdown latch-off
– Very low current sense leakage

CATALOG

VN5T006ASPTR-E COUNTRY OF ORIGIN

VN5T006ASPTR-E PARAMETRIC INFO

VN5T006ASPTR-E PACKAGE INFO

VN5T006ASPTR-E MANUFACTURING INFO

VN5T006ASPTR-E PACKAGING INFO

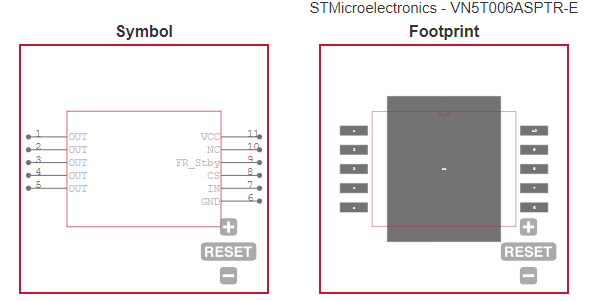

VN5T006ASPTR-E ECAD MODELS

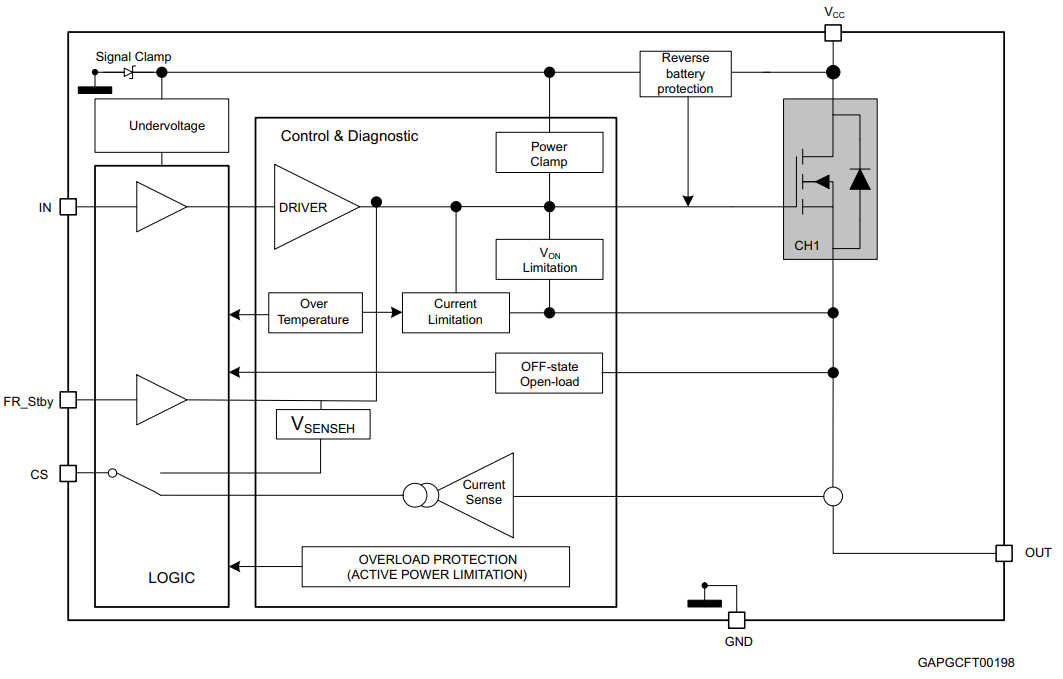

VN5T006ASPTR-E FUNCTIONAL BLOCK DIAGRAM

VN5T006ASPTR-E APPLICATIONS

COUNTRY OF ORIGIN

Malaysia

PARAMETRIC INFO

Number of Outputs	1
Number of Inputs	1
Maximum Output Current (A)	162
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	150
Switch On Resistance (mOhm)	6

PACKAGE INFO

Supplier Package	PowerSO
Pin Count	12
PCB	10
Tab	2Tab
Package Length (mm)	7.6(Max)
Package Width (mm)	9.5(Max)
Package Height (mm)	3.65(Max)
Package Diameter (mm)	N/R
Mounting	Surface Mount
Package Weight (g)	1.14
Package Family Name	SO
Jedec	MO-184AC
Package Outline	Link to Datasheet

MANUFACTURING INFO

MSL	3
Maximum Reflow Temperature (°C)	250
Reflow Solder Time (Sec)	30
Number of Reflow Cycle	3
Reflow Temp. Source	Link to Datasheet
Maximum Wave Temperature (°C)	N/R
Wave Solder Time (Sec)	N/R
Lead Finish(Plating)	Bright Sn
Under Plating Material	N/A
Terminal Base Material	Cu Alloy
Shelf Life Period	2 Years

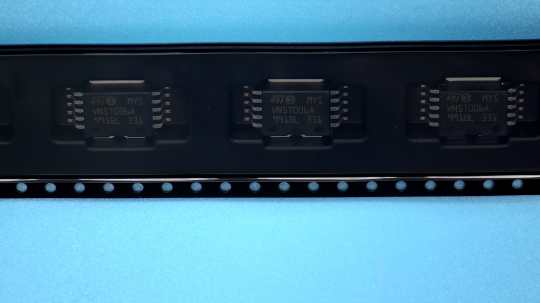

PACKAGING INFO

Packaging Suffix	TR
Packaging	Tape and Reel
Packaging Document	Link to Datasheet

ECAD MODELS

FUNCTIONAL BLOCK DIAGRAM

APPLICATIONS

• All types of resistive, inductive and capacitive loads
