• AEC-Q100 qualified
|
• General– Single channel smart high-side driver with MultiSense analog feedback– Very low standby current– Compatible with 3 V and 5 V CMOS outputs
|
• MultiSense diagnostic functions– Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and TCHIP device temperature– Overload and short to ground (power limitation) indication– Thermal shutdown indication– OFF-state open-load detection– Output short to VCC detection– Sense enable/disable
|
| • Protections– Undervoltage shutdown– Overvoltage clamp– Load current limitation– Self limiting of fast thermal transients– Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin– Loss of ground and loss of VCC– Reverse battery with external components– Electrostatic discharge protection
|
|
| CATALOG |
| VN7020AJTR COUNTRY OF ORIGIN |
VN7020AJTR PARAMETRIC INFO
|
VN7020AJTR PACKAGE INFO
|
VN7020AJTR MANUFACTURING INFO
|
VN7020AJTR PACKAGING INFO
|
VN7020AJTR EACD MODELS
|
| VN7020AJTR APPLICATIONS |
| |
| COUNTRY OF ORIGIN |
| China |
| |
PARAMETRIC INFO
|
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Maximum Output Current (A) |
90 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
30(Max) |
|
|
PACKAGE INFO
|
| Supplier packaging |
PowerSSO EP |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
16 |
| Pin shape |
Gull-wing |
| PCB |
16 |
| ears |
N/R |
| Package length (mm) |
4.9 |
| Package width (mm) |
3.9 |
| Package height (mm) |
1.6(Max) |
| Package diameter (mm) |
N/R |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Power Shrink Small Outline Package, Exposed Pad |
| Package series name |
SO |
| Package outline |
Link to datasheet |
|
| |
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Number of reflow cycles |
3 |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
| |

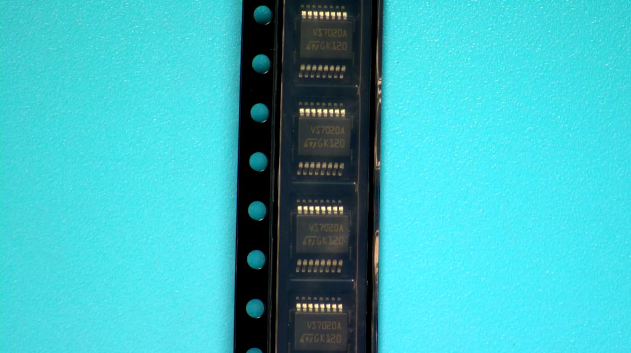

PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
|
| |
ECAD MODELS
|
|
| APPLICATIONS |
| • All types of Automotive resistive, inductive and capacitive loads |
| • Specially intended for automotive turn indicators (up to 2x P27W or SAE1156 and R5W paralleled or LED rear combinations) |
| • Protected supply for ADAS systems: radars and sensors |
