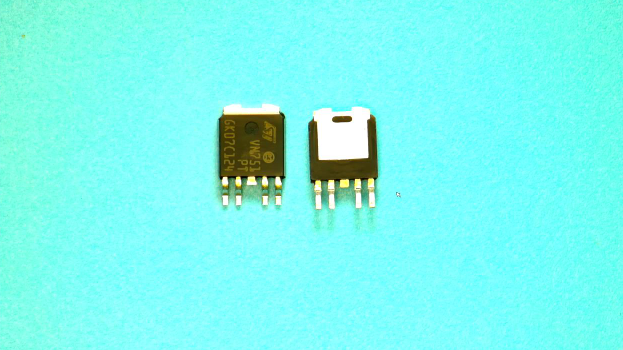

• 8 V to 36 V supply voltage range
|
• Up to IOUT = 2.5 A operating current
|
• RDS(on): 60 m
|
| • CMOS compatible input |
| • Thermal shutdown |
| • Shorted load protection |
| • Undervoltage and overvoltage shutdown |
| • Protection against loss of ground |
| • Fast demagnetization of inductive loads |
| • Very low standby current |
| • Compliance to 61000-4-4 IEC test up to 4 kV |
| • Open drain status output |
| |
| CATALOG |
| VN751PT COUNTRY OF ORIGIN |
VN751PT PARAMETRIC INFO
|
VN751PT PACKAGE INFO
|
VN751PT MANUFACTURING INFO
|
VN751PT PACKAGING INFO
|
VN751PT EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Maximum Output Current (A) |
6 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
60 |
| Supplier Temperature Grade |
Industrial |
|
|
PACKAGE INFO
|
| Supplier Package |
PPAK |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
5 |
| Lead Shape |
Gull-wing |
| PCB |
4 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
6.6(Max) |
| Package Width (mm) |
6.2(Max) |
| Package Height (mm) |
2.4(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.63(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
PPAK |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
1000 |
|
|

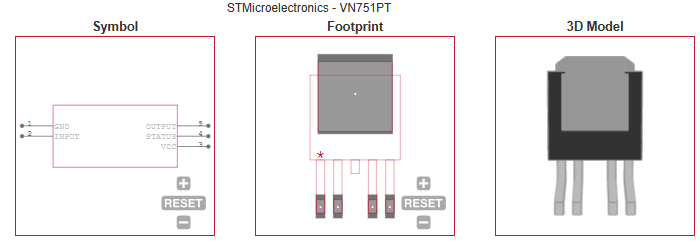

ECAD MODELS
|
|
