• CMOS compatible input
|
• Junction overtemperature protection
|
• Case overtemperature protection for thermal
independence of the channels
|
• Current limitation
|
• Shorted load protection
|
• Undervoltage shutdown
|
• Protection against loss of ground
|
• Very low standby current
|
• Compliance to 61000-4-4 IEC test up to 4 kV
|
|
| CATALOG |
| VN808CMTR-32-E COUNTRY OF ORIGIN |
VN808CMTR-32-E PARAMETRIC INFO
|
VN808CMTR-32-E PACKAGE INFO
|
VN808CMTR-32-E MANUFACTURING INFO
|
VN808CMTR-32-E PACKAGING INFO
|
VN808CMTR-32-E ECAD MODELS
|
|
COUNTRY OF ORIGIN
|
| Malaysia |
|
PARAMETRIC INFO
|
| Number of Outputs |
8 |
| Number of Inputs |
8 |
| Maximum Output Current (A) |
1.7 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Switch On Resistance (mOhm) |
160(Max) |
| Maximum Power Dissipation (mW) |
96000 |
| Supplier Temperature Grade |
Industrial |
|
|
PACKAGE INFO
|
| Supplier Package |
PowerSO |
| Pin Count |
36 |
| PCB |
36 |
| Tab |
N/R |
| Package Length (mm) |
16(Max) |
| Package Width (mm) |
11.1(Max) |
| Package Height (mm) |
3.3(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Family Name |
SOP |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
245 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|

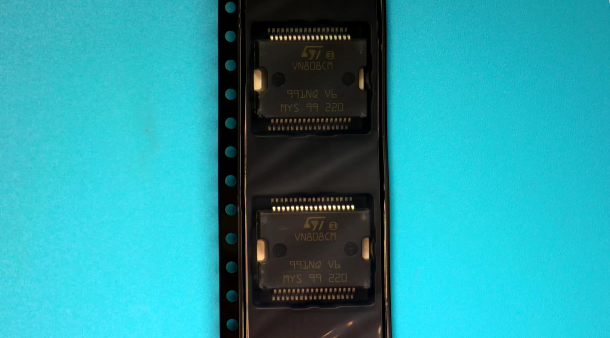

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

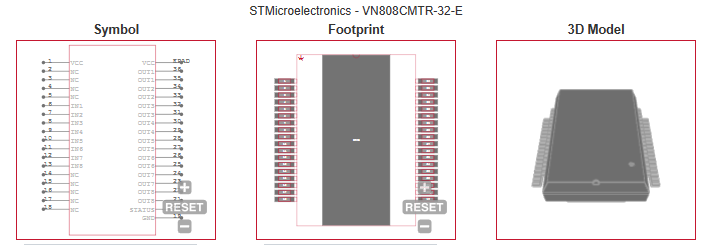

ECAD MODELS
|
|
|
| |
