• CMOS compatible input
|
• Proportional load current sense
|
• Shorted load protection
|
| • Under voltage and overvoltage shutdown |
| • Overvoltage clamp |
| • Thermal shutdown |
| • Current limitation |
| • Protection against loss of ground and loss of VCC |
| • Very low standby power dissipation |
| • Reverse battery protected (see Application schematic on page 16) |
| • In compliance with the 2002/95/ec european directive |
| |
| CATALOG |
| VN920-E COUNTRY OF ORIGIN |
VN920-E PARAMETRIC INFO
|
VN920-E PACKAGE INFO
|
VN920-E MANUFACTURING INFO
|
VN920-E PACKAGING INFO
|
VN920-E EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Malta |
| China |
|
PARAMETRIC INFO
|
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Maximum Output Current (A) |
75 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
16(Max) |
| Maximum Power Dissipation (mW) |
96100 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|

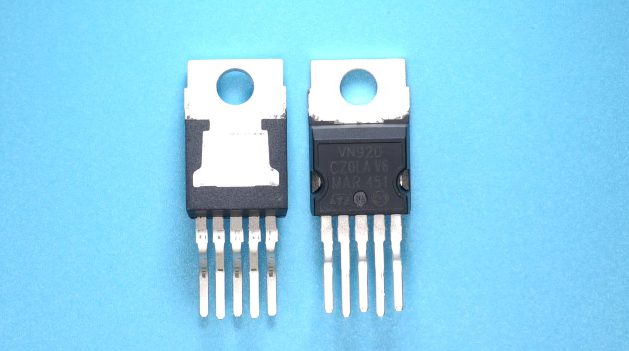

PACKAGE INFO
|
| Supplier Package |
PENTAWATT |
| Basic Package Type |
Through Hole |
| Pin Count |
5 |
| Lead Shape |
Through Hole |
| PCB |
5 |
| Tab |
Tab |
| Pin Pitch (mm) |
1.27(Max)|5.24(Max) |
| Package Length (mm) |
10.4(Max) |
| Package Width (mm) |
4.8(Max) |
| Package Height (mm) |
9.2 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
21.15(Max) |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Family Name |
TO-220 |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/A |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
N/A |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
10 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
2 |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Packaging Document |
Link to Datasheet |
|
|

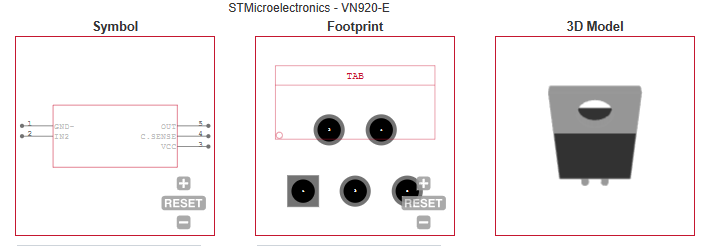

ECAD MODELS
|
|
|
|
| |
