• AEC-Q100 qualified
|
• General– Very low standby current– 3.0 V CMOS compatible input– Optimized electromagnetic emission– Very low electromagnetic susceptibility
– Compliant with European directive 2002/95/EC– Fault reset standby pin (FR_Stby)
|
• Diagnostic functions– Proportional load current sense– High current sense precision for wide range currents– Off-state openload detection– Output short to VCC detection– Overload and short to ground latch-off– Thermal shutdown latch-off– Very low current sense leakage
|
| • Protections– Undervoltage shutdown– Overvoltage clamp– Load current limitation– Self limiting of fast thermal transients– Protection against loss of ground and loss of VCC– Thermal shutdown– Electrostatic discharge protection |
| |
| CATALOG |
| VND5T050AKTR-E COUNTRY OF ORIGIN |
VND5T050AKTR-E PARAMETRIC INFO
|
VND5T050AKTR-E PACKAGE INFO
|
VND5T050AKTR-E MANUFACTURING INFO
|
VND5T050AKTR-E PACKAGING INFO
|

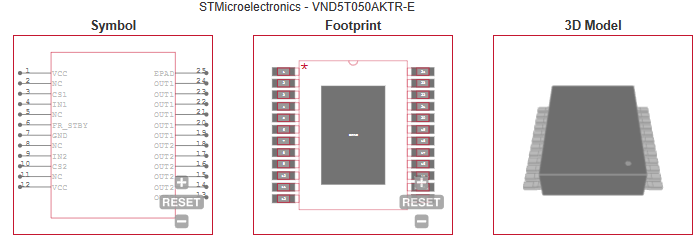

VND5T050AKTR-E EACD MODELS
|
| VND5T050AKTR-E APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
|
PARAMETRIC INFO
|
| Number of Outputs |
2 |
| Number of Inputs |
2 |
| Maximum Output Current (A) |
46 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
50 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
PowerSSO EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
24 |
| Lead Shape |
Gull-wing |
| PCB |
24 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
10.5(Max) |
| Package Width (mm) |
7.6(Max) |
| Package Height (mm) |
2.4(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2.47(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Power Shrink Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
| |
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|

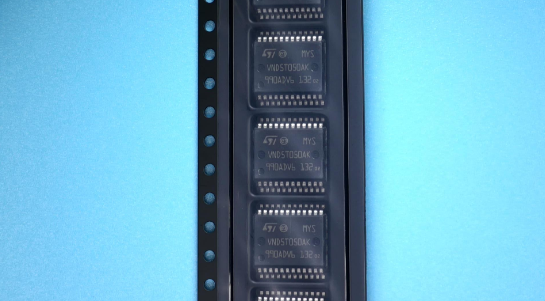

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • All types of resistive, inductive and capacitive loads |
| |
