• AEC-Q100 qualified
|
• General– Very low standby current– 3.0 V CMOS compatible input– Optimized electromagnetic emission– Very low electromagnetic susceptibility
– Compliant with European directive 2002/95/EC– Fault reset standby pin (FR_Stby)– Optimized for LED application
|
• Diagnostic functions– Proportional load current sense– High current sense precision for wide range currents– Off-state openload detection– Output short to VCC detection– Overload and short to ground latch-off– Thermal shutdown latch-off– Very low current sense leakage
|
|
| CATALOG |

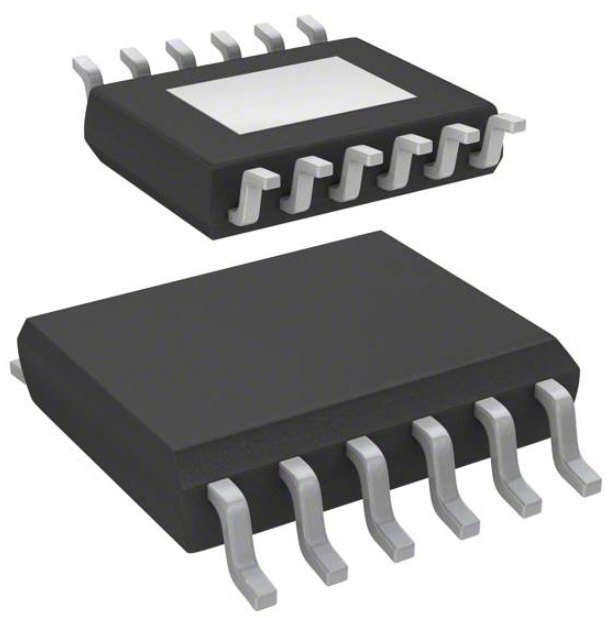

VND5T100LAJTR-E COUNTRY OF ORIGIN
|
VND5T100LAJTR-E PARAMETRIC INFO
|
VND5T100LAJTR-E PACKAGE INFO
|
VND5T100LAJTR-E MANUFACTURING INFO
|
VND5T100LAJTR-E PACKAGING INFO
|

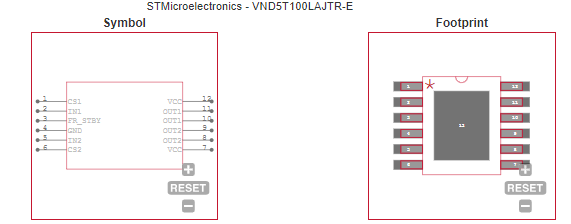

VND5T100LAJTR-E ECAD MODELS
|
VND5T100LAJTR-E APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Morocco
|
|
PARAMETRIC INFO
|
| Number of Outputs |
2 |
| Number of Inputs |
2 |
| Maximum Output Current (A) |
30 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Typical Switch On Resistance (mOhm) |
100 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
PowerSSO EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
12 |
| Lead Shape |
Gull-wing |
| PCB |
12 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.8 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.65(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Power Shrink Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Jedec |
N/A |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
Ag |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|
PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• All types of resistive, inductive and capacitive loads
|
| |
