• AEC-Q100 qualified
|
• General− Double channel smart high-side driver with MultiSense analog feedback− Very low standby current− Compatible with 3 V and 5 V CMOS outputs
|
• MultiSense diagnostic functions− Multiplexed analog feedback of: load current with high precision proportional current mirror, VCC supply voltage and TCHIP device temperature− Overload and short to ground (power limitation) indication− Thermal shutdown indication− OFF-state open-load detection− Output short to VCC detection− Sense enable/disable
|
| • Protections− Undervoltage shutdown− Overvoltage clamp− Load current limitation− Self limiting of fast thermal transients− Configurable latch-off on overtemperature or power limitation with dedicated fault reset pin |
|
| CATALOG |
| VND7050AJTR COUNTRY OF ORIGIN |
VND7050AJTR PARAMETRIC INFO
|
VND7050AJTR PACKAGE INFO
|
VND7050AJTR MANUFACTURING INFO
|
VND7050AJTR PACKAGING INFO
|
VND7050AJTR EACD MODELS
|
| VND7050AJTR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Morocco |
|
PARAMETRIC INFO
|
| Number of Outputs |
2 |
| Number of Inputs |
2 |
| Maximum Output Current (A) |
42 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
50 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier Package |
PowerSSO EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
16 |
| Lead Shape |
Gull-wing |
| PCB |
16 |
| Tab |
N/R |
| Package Length (mm) |
4.9 |
| Package Width (mm) |
3.9 |
| Package Height (mm) |
1.6(Max) |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Description |
Power Shrink Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|

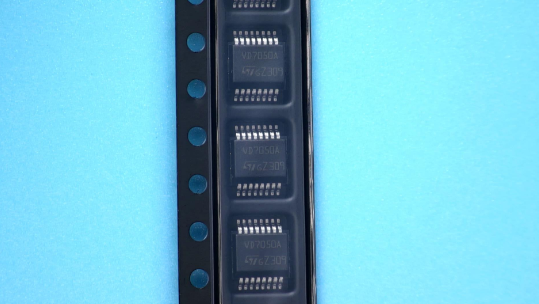

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
|

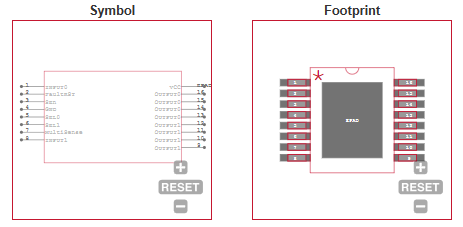

ECAD MODELS
|
|
| APPLICATIONS |
| • All types of Automotive resistive, inductive and capacitive loads |
| • Specially intended for Automotive Signal Lamps (up to P27W or SAE1156 or LED Rear Combinations) |
|
