| • Automotive qualified |
| • Drain current: 3.5A
|
| • ESD protection |
| • Overvoltage clamp |
| • Thermal shutdown
|
| • Current and power limitation |
| • Very low standby current |
| • Very low electromagnetic susceptibility |
| • In compliance with the 2002/95/EC European
directive |
| • Open drain status output (VNL5160S5-E only)
|
| • Specially intended for R10W or 2x R5W
automotive signal lamps |
|
| CATALOG |
| VNL5160S5TR-E COUNTRY OF ORIGIN |
| VNL5160S5TR-E PARAMETRIC INFO |
| VNL5160S5TR-E PACKAGE INFO |
| VNL5160S5TR-E MANUFACTURING INFO |
| VNL5160S5TR-E PACKAGING INFO |
| VNL5160S5TR-E ECAD MODELS |
| VNL5160S5TR-E FUNCTIONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| China |
|
| PARAMETRIC INFO |
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Maximum Output Current (A) |
7.5 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
160 |
| Supplier Temperature Grade |
Automotive |
|
| PACKAGE INFO |
| Supplier Package |
SO N |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
8 |
| Lead Shape |
Gull-wing |
| PCB |
8 |
| Tab |
N/R |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
5(Max) |
| Package Width (mm) |
4(Max) |
| Package Height (mm) |
1.65(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Seated Plane Height (mm) |
1.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Small Outline IC Narrow Body |
| Package Family Name |
SO |
| Jedec |
MS-012AA |
| Package Outline |
Link to Datasheet |
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
PdNiAg |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|

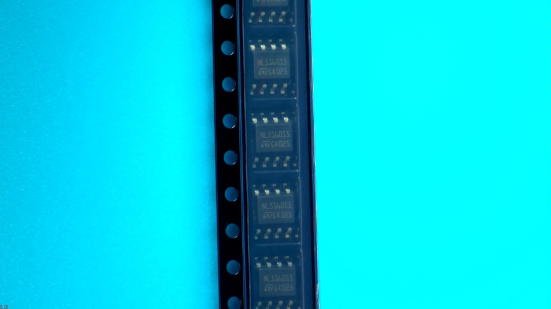

| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2500 |
| Packaging Document |
Link to Datasheet |
|
| ECAD MODELS |
 |
|

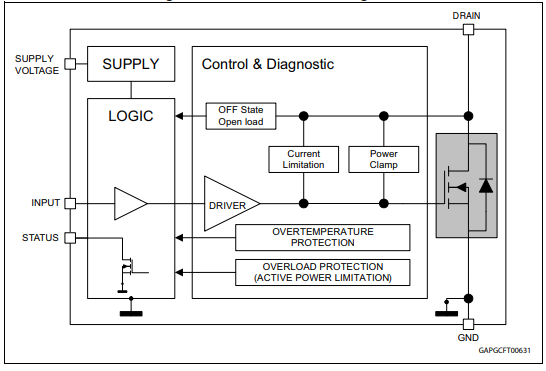

| FUNCTIONAL BLOCK DIAGRAM |
 |
| |
