| ■ Linear current limitation |
| ■ Thermal shutdown |
| ■ Short circuit protection |
| ■ Integrated clamp |
| ■ Low current drawn from input pin |
| ■ Diagnostic feedback through input pin |
| ■ ESD protection |
| ■ Direct access to the gate of the Power
MOSFET (analog driving) |
| ■ Compatible with standard Power MOSFET in
compliance with the 2002/95/EC European
directive |
|
| CATALOG |
| VNN3NV04PTR-E COUNTRY OF ORIGIN |
| VNN3NV04PTR-E PARAMETRIC INFO |
| VNN3NV04PTR-E PACKAGE INFO |
| VNN3NV04PTR-E MANUFACTURING INFO |
| VNN3NV04PTR-E PACKAGING INFO |
| VNN3NV04PTR-E ECAD MODELS |
| VNN3NV04PTR-E FUNCYIONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| China |
| United States of America |
|
| PARAMETRIC INFO |
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Maximum Output Current (A) |
7 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
120(Max) |
| Maximum Power Dissipation (mW) |
7000 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
| |
| PACKAGE INFO |
| Supplier Package |
SOT-223 |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
4 |
| Lead Shape |
Gull-wing |
| PCB |
3 |
| Tab |
Tab |
| Pin Pitch (mm) |
2.3 |
| Package Length (mm) |
6.5 |
| Package Width (mm) |
3.5 |
| Package Height (mm) |
1.8(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
1.9(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Small Outline Transistor |
| Package Family Name |
SOT |
| Package Outline |
Link to Datasheet |
|
|
| MANUFACTURING INFO |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Number of Reflow Cycle |
3 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
| |
| PACKAGING INFO |
| Packaging Suffix |
TR |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
| |
| ECAD MODELS |
 |
|

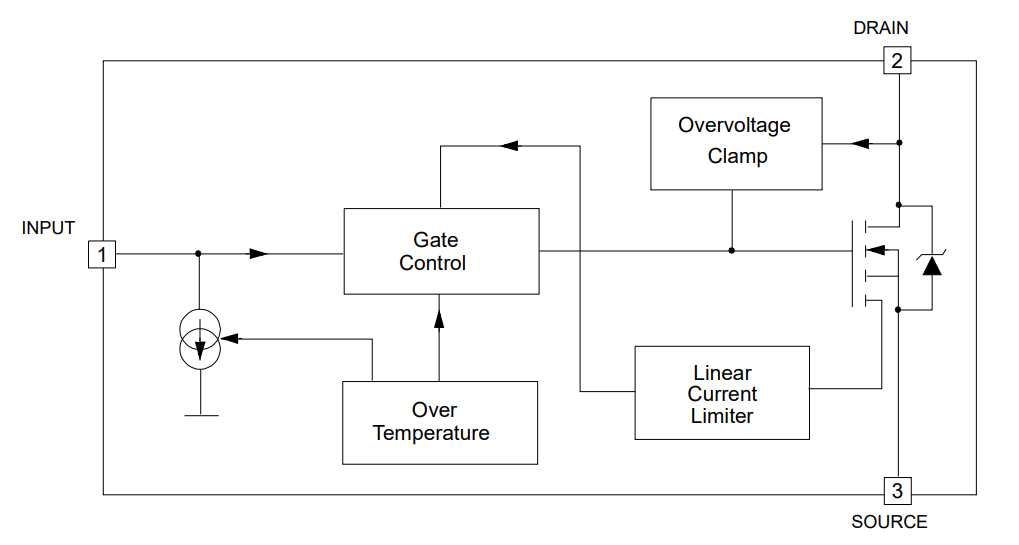

| FUNCYIONAL BLOCK DIAGRAM |
 |
|
