• Linear current limitation
|
• Thermal shutdown
|
• Short circuit protection
|
| • Integrated clamp
|
| • Low current drawn from input pin |
| • Diagnostic feedback through input pin |
| • ESD protection |
|
| CATALOG |
| VNN7NV04PTR-E COUNTRY OF ORIGIN |
VNN7NV04PTR-E PARAMETRIC INFO
|
VNN7NV04PTR-E PACKAGE INFO
|
VNN7NV04PTR-E MANUFACTURING INFO
|
VNN7NV04PTR-E PACKAGING INFO
|
VNN7NV04PTR-E EACD MODELS
|
| VNN7NV04PTR-E APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Number of Outputs |
1 |
| Number of Inputs |
1 |
| Maximum Output Current (A) |
12 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
65(Max) |
| Maximum Power Dissipation (mW) |
7000 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-223 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
4 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
2.3 |
| Package length (mm) |
6.5 |
| Package width (mm) |
3.5 |
| Package height (mm) |
1.8(Max) |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
1.9(Max) |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
TO-261AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
210 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Wave soldering temperature source |
Link to datasheet |
| Lead Finish(Plating) |
Matt Sn |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
|

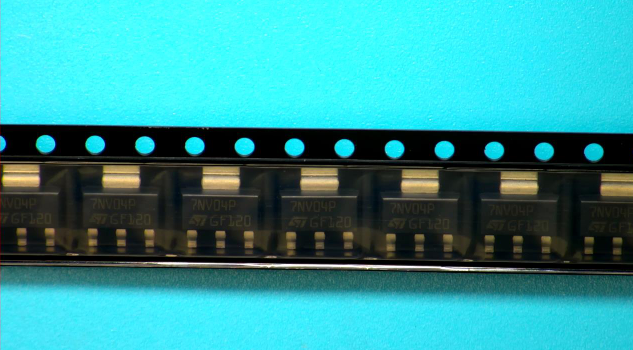

PACKAGING INFO
|
| Packaging Suffix |
TR |
| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
| packaging type file |
Link to datasheet |
|
|

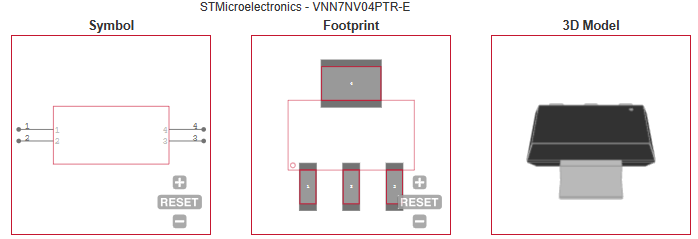

ECAD MODELS
|
|
| |
One-stop supplier of IC products
