| ■OUTPUT CURRENT PER CHANNEL: 10A |
| ■ CMOS COMPATIBLE INPUTS |
| ■ UNDERVOLTAGE & OVERVOLTAGE SHUT- DOWN |
| ■ OVERVOLTAGE CLAMP |
| ■ THERMAL SHUT-DOWN |
| ■ CURRENT LIMITATION |
| ■ VERY LOW STAND-BY POWER DISSIPATION |
■ PROTECTION AGAINST:
- LOSS OF GROUND & LOSS OF VCC |
| ■ REVERSE BATTERY PROTECTION (**) |
| ■ IN COMPLIANCE WITH THE 2002/95/EC
EUROPEAN DIRECTIVE |
|
| CATALOG |
| VNQ690SPTR-E COUNTRY OF ORIGIN |
| VNQ690SPTR-E LIFECYCLE |
| VNQ690SPTR-E PARAMETRIC INFO |
| VNQ690SPTR-E PACKAGE INFO |
| VNQ690SPTR-E MANUFACTURING INFO |
| VNQ690SPTR-E PACKAGING INFO |
| VNQ690SPTR-E FUNCTONAL BLOCK DIAGRAM |
|
| COUNTRY OF ORIGIN |
| Morocco |
|
| LIFECYCLE |
Obsolete
Jun 09,2021 |
|
| PARAMETRIC INFO |
| Number of Outputs |
4 |
| Number of Inputs |
4 |
| Maximum Output Current (A) |
10 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
90(Max) |
| Maximum Power Dissipation (mW) |
78000 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
|
| |
| PACKAGE INFO |
| Supplier Package |
PowerSO |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
12 |
| Lead Shape |
Gull-wing |
| PCB |
10 |
| Tab |
2Tab |
| Pin Pitch (mm) |
1.27 |
| Package Length (mm) |
7.6(Max) |
| Package Width (mm) |
9.5(Max) |
| Package Height (mm) |
3.65(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
3.75(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
1.14 |
| Package Material |
Plastic |
| Package Family Name |
SOP |
| Jedec |
MO-184AC |
| Package Outline |
Link to Datasheet |
|
| |
| Manufacturing Info |
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
250 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
IPC-1752 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn annealed |
| Under Plating Material |
N/A |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
|
| |
| PACKAGING INFO |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1000 |
|
| |

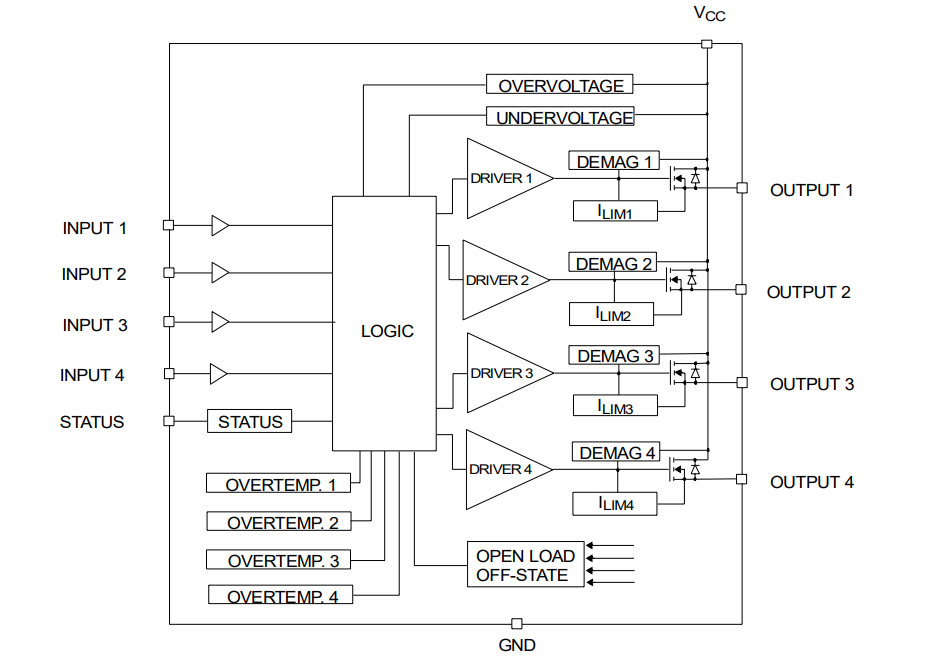

| FUNCTONAL BLOCK DIAGRAM |
 |
|
