• AEC-Q100 qualified
|
• ECOPACK: lead free and RoHS compliant
|
• Linear current limitation
|
| • Thermal shutdown
|
| • Short-circuit protection |
| • Integrated clamp |
| • Low current drawn from input pin |
| • Diagnostic feedback through input pin |
| • ESD protection |
| • Direct access to the gate of the Power MOSFET (analog driving) |
| • Compatible with standard Power MOSFET |
|
| CATALOG |
| VNS3NV04DPTR-E COUNTRY OF ORIGIN |
VNS3NV04DPTR-E PARAMETRIC INFO
|
VNS3NV04DPTR-E PACKAGE INFO
|
VNS3NV04DPTR-E MANUFACTURING INFO
|
VNS3NV04DPTR-E PACKAGING INFO
|
VNS3NV04DPTR-E EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| Morocco |
| China |
|
PARAMETRIC INFO
|
| Number of Outputs |
2 |
| Number of Inputs |
2 |
| Maximum Output Current (A) |
7 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
| Switch On Resistance (mOhm) |
120(Max) |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SO N |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
8 |
| Pin shape |
Gull-wing |
| PCB |
8 |
| ears |
N/R |
| Pin spacing (mm) |
1.27 |
| Package length (mm) |
5(Max) |
| Package width (mm) |
4(Max) |
| Package height (mm) |
1.65(Max) |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
5(Max) |
| Package Overall Width (mm) |
6.2(Max) |
| Package Overall Height (mm) |
1.75(Max) |
| Mounting surface height (mm) |
1.75(Max) |
| Install |
Surface Mount |
| Package weight (g) |
not applicable |
| Packaging materials |
Plastic |
| package instruction |
Small Outline IC Narrow Body |
| Package series name |
SO |
| JEDEC |
MS-012AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
not applicable |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
not applicable |
| Terminal Base Material |
Cu Alloy |
| Shelf Life Period |
2 Years |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |

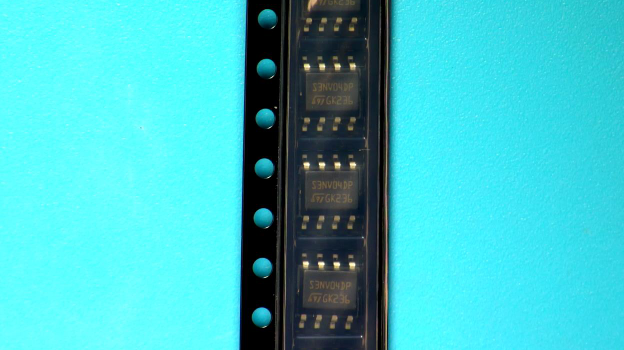

TR |
| Package |
Tape and reel packaging |
| Packing quantity |
1000 |
| packaging type file |
Link to datasheet |
|
|
ECAD MODELS
|
|
|
| |
