• Very low forward voltage drop
|
• 150 °C max. operating junction temperature
|
• Glass passivated pellet chip junction
|
| • Designed and qualified according to JEDEC®-JESD 47
|
| • Material categorization: for definitions of compliance please see www.vishay.com/doc?99912 |
|
| CATALOG |
| VS-40EPS08-M3 COUNTRY OF ORIGIN |
VS-40EPS08-M3 PARAMETRIC INFO
|
VS-40EPS08-M3 PACKAGE INFO
|
VS-40EPS08-M3 PACKAGING INFO
|
| VS-40EPS08-M3 APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| type |
Switching Diode |
| Configuration |
Single |
| Peak Reverse Repetitive Voltage (V) |
800 |
| Maximum DC Reverse Voltage (V) |
800 |
| Maximum Continuous Forward Current (A) |
40 |
| Speed |
Standard Recovery Rectifier |
| Peak Forward Voltage (V) |
1.1 |
| Peak Non-Repetitive Surge Current (A) |
475 |
| Peak Reverse Current (uA) |
100 |
| Operating Junction Temperature (°C) |
-40 to 150 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |

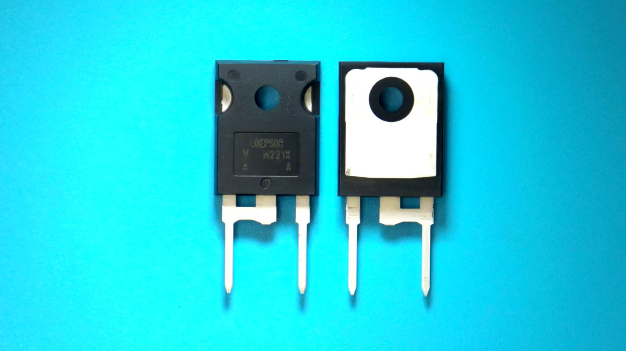

TO-247AC Modified |
| Basic package type |
Through Hole |
| Number of pins |
2 |
| Pin shape |
Through Hole |
| PCB |
2 |
| ears |
ears |
| Pin spacing (mm) |
5.46 |
| Package length (mm) |
15.87(Max) |
| Package width (mm) |
5.31(Max) |
| Package height (mm) |
20.7(Max) |
| Package diameter (mm) |
N/R |
| Mounting surface height (mm) |
24.99(Max) |
| Install |
Through Hole |
| Package series name |
TO-247 |
| Package outline |
Link to datasheet |
|
|
PACKAGING INFO
|
| Package |
Tape and reel packaging |
| Packing quantity |
25 |
|
|
APPLICATIONS
|
• Input rectification
|
| • Vishay Semiconductors switches and output rectifiers which are available in identical package outlines |
| |
