| WM8731SEDS/RV LIFECYCLE |
WM8731SEDS/RV PARAMETRIC INFO
|
WM8731SEDS/RV PACKAGE INFO
|
WM8731SEDS/RV MANUFACTURING INFO
|
WM8731SEDS/RV PACKAGING INFO
|
WM8731SEDS/RV ECAD MODELS
|

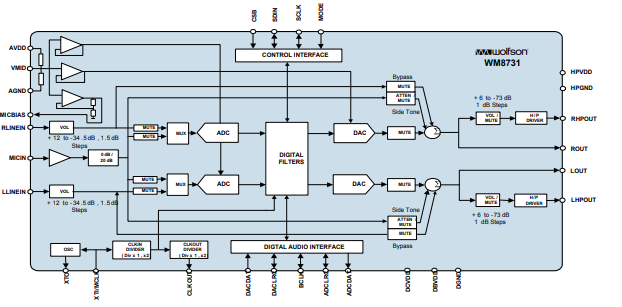

WM8731SEDS/RV BLOCK DIAGRAM
|
|
| LIFECYCLE |
Obsolete
Sep 21,2022 |
|
PARAMETRIC INFO
|
| Type |
PCM |
| Number of ADCs |
2 |
| Number of DACs |
2 |
| Interface Type |
Serial (2-Wire, 3-Wire, I2S) |
| Sampling Rate (ksps) |
48 |
| Number of Channels |
2ADC / 2DAC |
| Number of ADC Inputs |
2 |
| Number of DAC Outputs |
2 |
| Signal to Noise Ratio (dB) |
95 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Storage Temperature (°C) |
-65 |
| Power Supply Type |
Analog|Digital |
| Process Technology |
CMOS |
| Typical Operating Supply Voltage (V) |
3.3 |
| Operating Supply Voltage (V) |
3.3 |
| Minimum Operating Supply Voltage (V) |
2.7 |
| Maximum Operating Supply Voltage (V) |
3.6 |
|
|
PACKAGE INFO
|
| Supplier Package |
SSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
10.2 |
| Package Width (mm) |
5.3 |
| Package Height (mm) |
1.75(Max) |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-150AH |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
3 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
20 |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
| BLOCK DIAGRAM |
|
| |
