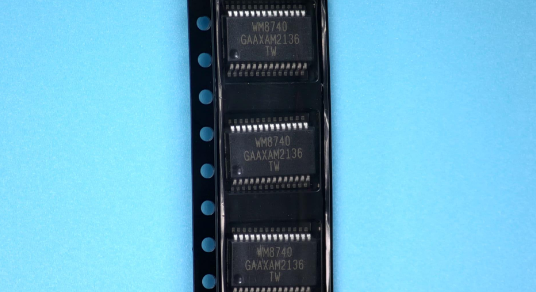

WM8740SEDS/RV PARAMETRIC INFO
|
WM8740SEDS/RV PACKAGE INFO
|
WM8740SEDS/RV MANUFACTURING INFO
|
WM8740SEDS/RV PACKAGING INFO
|
|
PARAMETRIC INFO
|
| Resolution |
24bit |
| Number of DAC Channels |
2 |
| Number of Outputs per Chip |
2 |
| Conversion Rate |
192ksps |
| Converter Type |
Audio |
| Output Type |
Voltage |
| Digital Interface Type |
Serial |
| Output Polarity |
Unipolar |
| Signal to Noise Ratio |
120dB(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Power Supply Type |
Analog and Digital |
| Minimum Single Supply Voltage (V) |
2.97 |
| Typical Single Supply Voltage (V) |
3.3|5 |
| Maximum Single Supply Voltage (V) |
5.5 |
| Digital Supply Support |
Yes |
|
|
PACKAGE INFO
|
| Supplier Package |
SSOP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
28 |
| Lead Shape |
Gull-wing |
| PCB |
28 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
10.2 |
| Package Width (mm) |
5.3 |
| Package Height (mm) |
1.75 |
| Package Diameter (mm) |
N/R |
| Seated Plane Height (mm) |
2(Max) |
| Mounting |
Surface Mount |
| Package Material |
Plastic |
| Package Description |
Shrink Small Outline Package |
| Package Family Name |
SO |
| Jedec |
MO-150AH |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Matte Sn |
| Under Plating Material |
N/A |
| Terminal Base Material |
N/A |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
2000 |
|
